Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 5 Series E39 530d (2001)

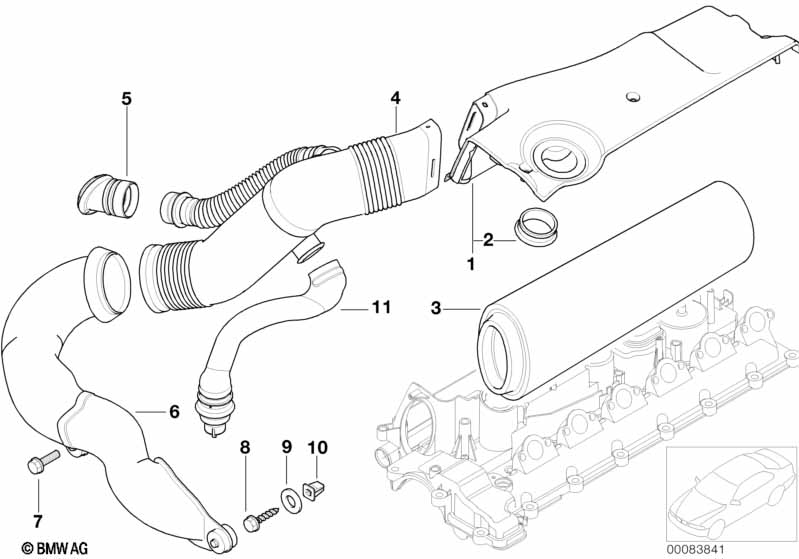

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, intake muffler | 1 | 13712247443 | Shop at ECS Tuning | ||||||
| 02 | Gasket | 1 | 13712248556 | $6.88 | Shop at ECS Tuning | |||||
| 03 | Air filter element | 1 | 13712247444 | $55.40 | Shop at ECS Tuning | |||||
| 04 | Rubber boot | 1 | 10/1999 | 13717786221 | Shop at ECS Tuning | |||||
| 05 | Air hose | 1 | 13711437887 | $15.63 | Shop at ECS Tuning | |||||
| 06 | Intake manifold | 1 | 13712247911 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt with washer | M6X30-U2-ZNS3 | 1 | 07119903994 | $0.65 | Shop at ECS Tuning | ||||
| 08 | Hi-lo screw | 4,9X40 | 2 | 64501380496 | $1.27 | Shop at ECS Tuning | ||||
| 09 | Washer | 6,4X25X1,5 | 2 | 07146977329 | $0.64 | Shop at ECS Tuning | ||||
| 10 | Expanding nut | ST 6.3 | 1 | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
| 11 | Hose | 1 | 13717786742 | Shop at ECS Tuning |
