Fuel filter, fuel cooling for BMW 5 Series E39 530d (2001)

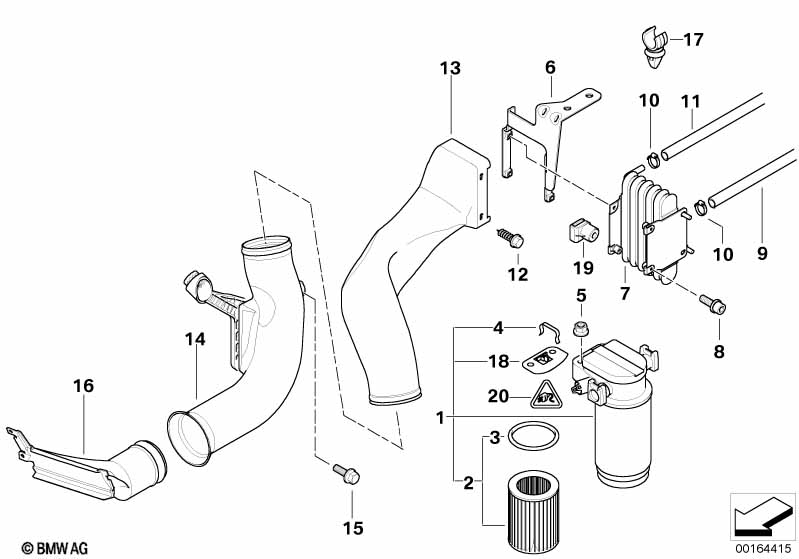

This Fuel filter, fuel cooling technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | Hex bolt | M6X30-8.8-ZNS3 | 2 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| -- | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 20 | Plug housing | 1 | 12521740485 | $3.07 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Circular connector | 0,5- 1,0 MM² | 3 | 61130007656 | $4.75 | Shop at ECS Tuning | ||||
| -- | Protection cap | 4-POL | 1 | 12521703593 | $1.68 | Shop at ECS Tuning | ||||
