Fuel pipe for BMW 5 Series E39 530d (2001)

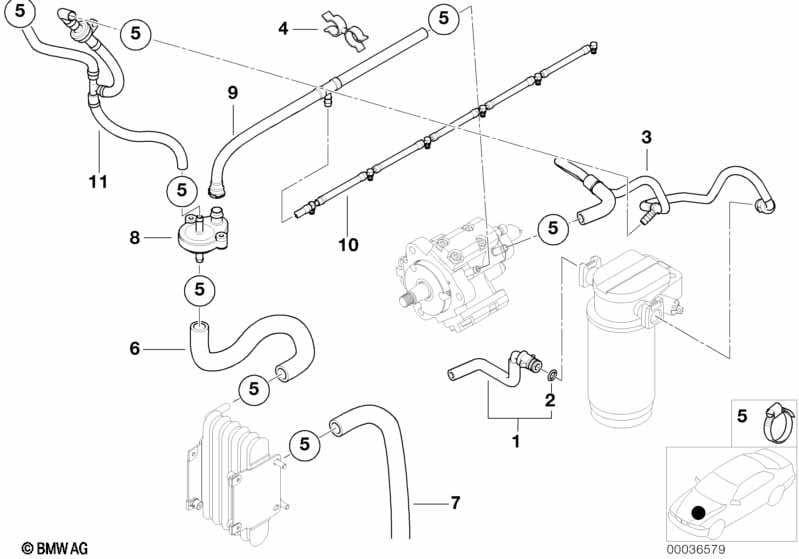

This Fuel pipe technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel hose | 8X13MMX1000 | 1 | 03/2000 | 13537563456 | $44.77 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hose clamp | L12-15 | 1 | 03/2000 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 03 | Fuel supply line | 1 | 07/2000 | 03/2003 | 13537787428 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | 13MM-25MM | 1 | 11721285162 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hose clamp | 13MM-20MM | 1 | 11721708656 | $1.83 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | 13MM-25MM | 1 | 13311307296 | Shop at ECS Tuning | |||||
| 04 | Hose clamp | 10MM-13MM | 1 | 13537787270 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | L12-15 | 8 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 06 | Fuel hose | 8X13MM | X | 03/2003 | 13537529775 | $44.77 | Shop at ECS Tuning | |||
| 07 | Hose elbow | 1 | 13901742610 | Shop at ECS Tuning | ||||||
| 08 | Valve preheating | 1 | 13327787822 | $22.88 | Shop at ECS Tuning | |||||
| 09 | Fuel return line | 1 | 12/1998 | 13532248276 | Shop at ECS Tuning | |||||
| 10 | Overflow oil line | 1 | 13537789607 | $44.35 | Shop at ECS Tuning | |||||
| 11 | Pressure limiting valve | 1 | 03/2003 | 16121184977 | $67.80 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
