Fuel tank breather valve for BMW 7 Series E38 740i

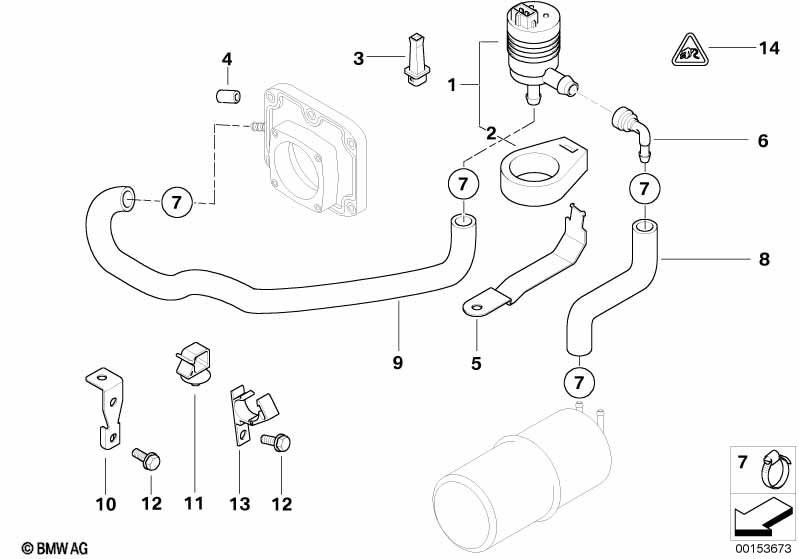

This Fuel tank breather valve technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel tank breather valve | 1 | 09/1998 | 13901433603 | $82.88 | Shop at ECS Tuning | ||||
| 02 | Bracket ventilation valve | 1 | 09/1998 | 13901433601 | $3.75 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 03 | Resistor | 1000OHM/BOSCH | 1 | 09/1998 | 13901734469 | $6.33 | Shop at ECS Tuning | |||
| 04 | Cap | D=7,0MM | 1 | 09/1998 | 11611727176 | $3.39 | Shop at ECS Tuning | |||
| 05 | Holder | 1 | 09/1998 | 13901705379 | $3.85 | Shop at ECS Tuning | ||||
| 06 | Connector | 135° | 1 | 09/1998 | 13901433068 | $3.75 | ENDED | Shop at ECS Tuning | ||
| 08 | Fuel hose | 8X13MMX1000 | X | 09/1998 | 13537563456 | $44.77 | Shop at ECS Tuning | |||
| 09 | Hose elbow | 1 | 09/1998 | 13901710555 | $66.53 | Shop at ECS Tuning | ||||
| 10 | Holder | 1 | 09/1998 | 13901440145 | $1.73 | Shop at ECS Tuning | ||||
| 11 | Cable holder | 1 | 09/1998 | 61138353135 | $0.35 | Shop at ECS Tuning | ||||
| 12 | Hex bolt with washer | M6X12-U1-8.8 | 3 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Tubing support | 2 | 09/1998 | 13311716049 | $1.13 | Shop at ECS Tuning | ||||
| 14 | Socket housing | 2 POL. | 1 | 09/1998 | 12521427615 | $1.73 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 2 | 09/1998 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | ||
| -- | Protection cap | 1 | 09/1998 | 12521716321 | $3.40 | Shop at ECS Tuning | ||||
