Fuel filter, pressure regulator for BMW 5 Series E39 M5 (2003)

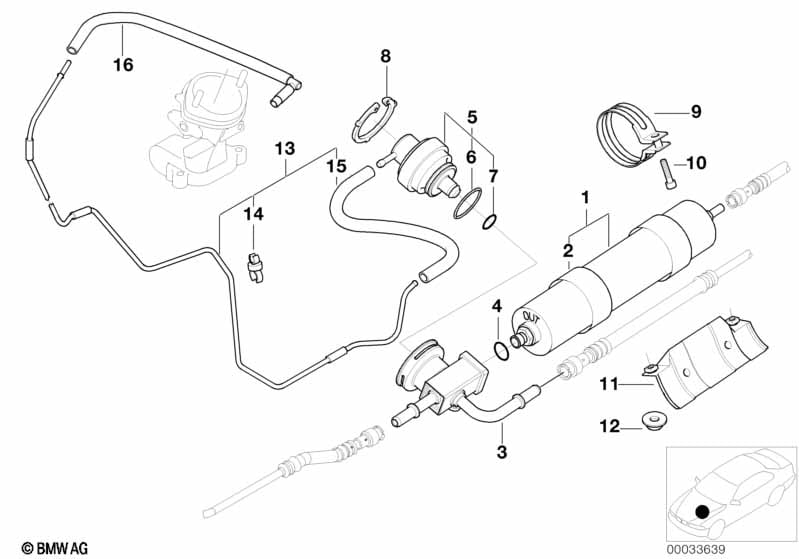

This Fuel filter, pressure regulator technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel filter | 1 | 13321407299 | $58.74 | Shop at ECS Tuning | |||||
| 02 | Damper ring | D=55MM | 2 | 13321734056 | $2.73 | Shop at ECS Tuning | ||||
| 03 | Housing, pressure regulator | 1 | 13531406954 | $89.58 | Shop at ECS Tuning | |||||
| 04 | Gasket ring | A12X15-CU | 1 | 07119963129 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Pressure regulator | 1 | 13531404089 | $75.10 | Shop at ECS Tuning | |||||
| 06 | O-ring | 20X2,5 | 1 | 13531720251 | $4.38 | Shop at ECS Tuning | ||||
| 07 | O-ring | 5X1,5 | 1 | 13531720252 | $3.75 | Shop at ECS Tuning | ||||
| 08 | Lock Ring | 1 | 13531736234 | $2.12 | Shop at ECS Tuning | |||||
| 09 | Bracket fuel strainer | D=55MM | 2 | 13321702583 | $16.33 | Shop at ECS Tuning | ||||
| 10 | Isa screw with washer | M6X30-U0-8.8 | 2 | 07129905537 | $1.09 | Shop at ECS Tuning | ||||
| 11 | Bracket fuel strainer | 1 | 51712693788 | $16.97 | ENDED | Shop at ECS Tuning | ||||
| 12 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 13 | Vacuum pipe | 1 | 13531407568 | $22.15 | Shop at ECS Tuning | |||||
| 14 | Holder | 1 | 62121364482 | $1.17 | Shop at ECS Tuning | |||||
| 15 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 16 | Vacuum pipe | 1 | 13531407717 | $11.10 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
