Mass air flow sensor, air duct left for BMW 7 Series E38 740d (2001)

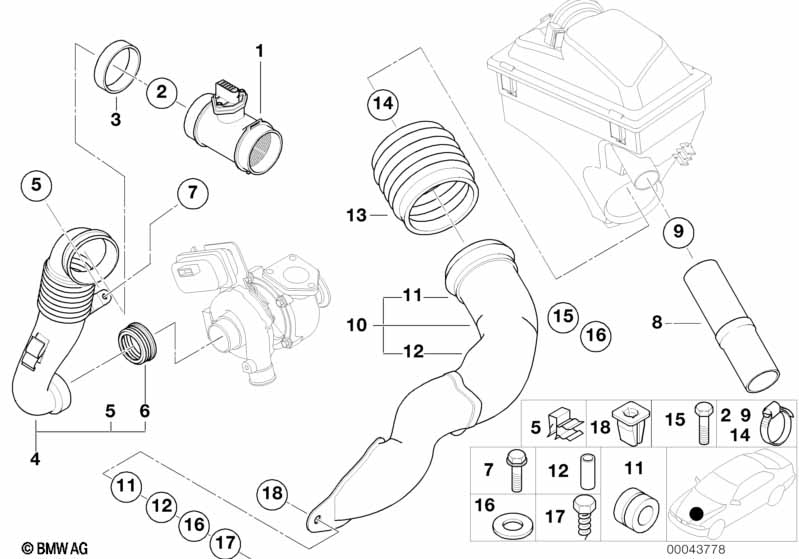

This Mass air flow sensor, air duct left technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO CYLINDER 5-8 | |||||||||
| 01 | Hot-film air mass meter | 1 | 13621433565 | $402.32 | Shop at ECS Tuning | |||||
| 02 | Hose clamp | L77-84 | 1 | 07129952131 | $1.78 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | 1 | 13712249212 | Shop at ECS Tuning | ||||||
| 04 | Pipe | 5-8 | 1 | 13712249869 | ENDED | Shop at ECS Tuning | ||||
| 05 | Pipe clip | 1 | 18307565082 | $0.38 | Shop at ECS Tuning | |||||
| 06 | Gasket ring | 1 | 13712247398 | $12.63 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X18-U1 | 1 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Air hose | 1 | 13711436388 | $55.43 | Shop at ECS Tuning | |||||
| 09 | Hose clamp | L42-48 | 1 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 10 | Intake manifold | 1 | 13712248919 | +core | Shop at ECS Tuning | |||||
| 11 | Rubber Mounting | 1 | 13711427713 | Shop at ECS Tuning | ||||||
| 12 | Sleeve | 3 | 13711427714 | ENDED | Shop at ECS Tuning | |||||
| 13 | Rubber boot | 3 | 13711741997 | Shop at ECS Tuning | ||||||
| 14 | Hose clamp | L95-102 | 1 | 07129952137 | $1.52 | Shop at ECS Tuning | ||||
| 15 | Hex bolt with washer | M6X40 ZNNIV SI | 1 | 07119904525 | $1.09 | Shop at ECS Tuning | ||||
| 16 | Washer | 6,4X25X1,5 | 3 | 07146977329 | $0.64 | Shop at ECS Tuning | ||||
| 17 | Hi-lo screw | 4,9X40 | 2 | 64501380496 | $1.27 | Shop at ECS Tuning | ||||
| 18 | Expanding nut | ST 6.3 | 1 | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
