Fuel injection system/Injection valve for BMW 5 Series E39 M5 (2003)

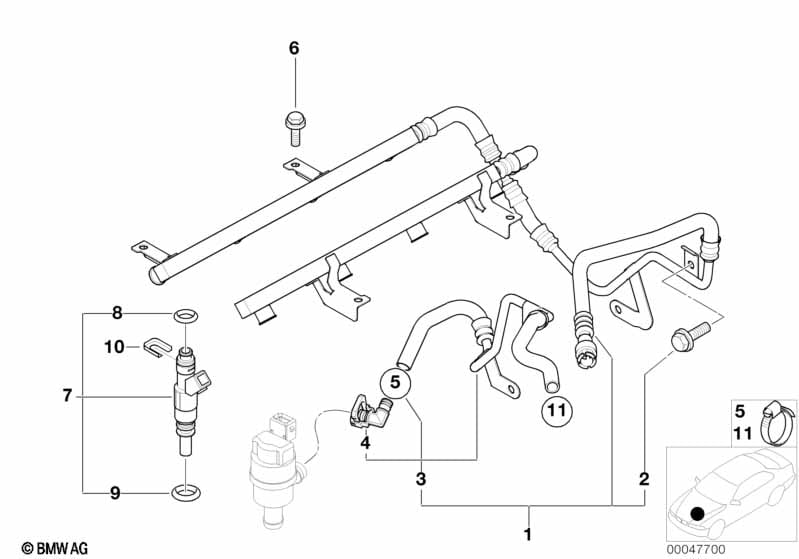

This Fuel injection system/Injection valve technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Injection pipe | 1 | 09/1999 | 13537830814 | $517.90 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Hex bolt with washer | M8X14 ZNNIV SI | 1 | 09/1999 | 07119905527 | $0.47 | Shop at ECS Tuning | |||
| 03 | Vent pipe | 1 | 09/1999 | 13537830982 | $265.18 | ENDED | Shop at ECS Tuning | |||
| 04 | Connector | 90° | 1 | 09/1999 | 13901741595 | $3.95 | Shop at ECS Tuning | |||
| 05 | Hose clamp | L12-14,5 | 1 | 09/1999 | 32411712735 | $0.62 | Shop at ECS Tuning | |||
| 06 | Hex bolt with washer | M6X16-U1-8.8 | 4 | 09/1999 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
| 07 | Injection valve | 8 | 09/1999 | 13641407938 | $146.88 | Shop at ECS Tuning | ||||
| 08 | O-ring | 7,52X3,51 | 8 | 09/1999 | 13641437476 | Shop at ECS Tuning | ||||
| 09 | O-ring | 9,3X2,62 | 8 | 09/1999 | 13647830611 | $9.36 | Shop at ECS Tuning | |||
| 10 | Clamp | 8 | 09/1999 | 13531274729 | $0.67 | Shop at ECS Tuning | ||||
| 11 | Hose clamp | L12-15 | 1 | 09/1999 | 07129952104 | $1.18 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
