Fuel filter, fuel cooling for BMW 3 Series E46 330d (2001)

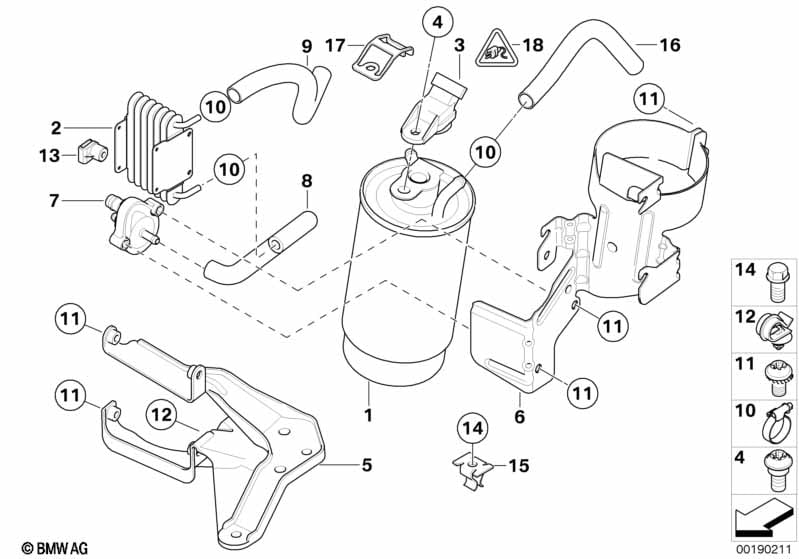

This Fuel filter, fuel cooling technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel filter | 1 | 13327787825 | $62.94 | Shop at ECS Tuning | |||||
| 02 | Fuel radiator | 1 | 13327792140 | Shop at ECS Tuning | ||||||
| 03 | Pressure sensor | 1 | 13327785354 | Shop at ECS Tuning | ||||||
| 04 | Torx-bolt with washer | M6X18 | 1 | 11617533344 | Shop at ECS Tuning | |||||
| 05 | Bracket, fuel radiator | 1 | 13327792138 | Shop at ECS Tuning | ||||||
| 06 | Bracket fuel strainer | 1 | 13327792139 | ENDED | Shop at ECS Tuning | |||||
| 07 | Valve preheating | 1 | 13327787822 | $22.88 | Shop at ECS Tuning | |||||
| 08 | Hose | 1 | 13327786248 | ENDED | Shop at ECS Tuning | |||||
| 09 | Fuel hose | 8X13MM | X | 13537529775 | $44.77 | Shop at ECS Tuning | ||||
| 10 | Hose clamp | L12-15 | 4 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 11 | Torx bolt | M6X14 | 7 | 13322249444 | Shop at ECS Tuning | |||||
| 12 | Clip retainer | 1 | 61138368029 | $0.43 | Shop at ECS Tuning | |||||
| 13 | Plastic nut | 2 | 13322249575 | Shop at ECS Tuning | ||||||
| 14 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Prestol-cage | M6 ZNS3 | 2 | 32411095443 | $1.48 | Shop at ECS Tuning | ||||
| 16 | Fuel hose | 8X13MMX1000 | X | 13537563456 | $44.77 | Shop at ECS Tuning | ||||
| 17 | Bow | 1 | 13327792163 | Shop at ECS Tuning | ||||||
| 18 | Socket housing | 3-POLIG | 1 | 12517788176 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bushing contact | 0,35 MM² | 1 | 12512247474 | $2.03 | Shop at ECS Tuning | ||||
| -- | Bushing contact | 1,5 - 2,5 MM² | 1 | 12512247475 | $2.03 | Shop at ECS Tuning | ||||
| -- | Grommet | 1 | 12517785093 | Shop at ECS Tuning | ||||||
