Fuel filter, fuel cooling for BMW 5 Series E39 530d (2001)

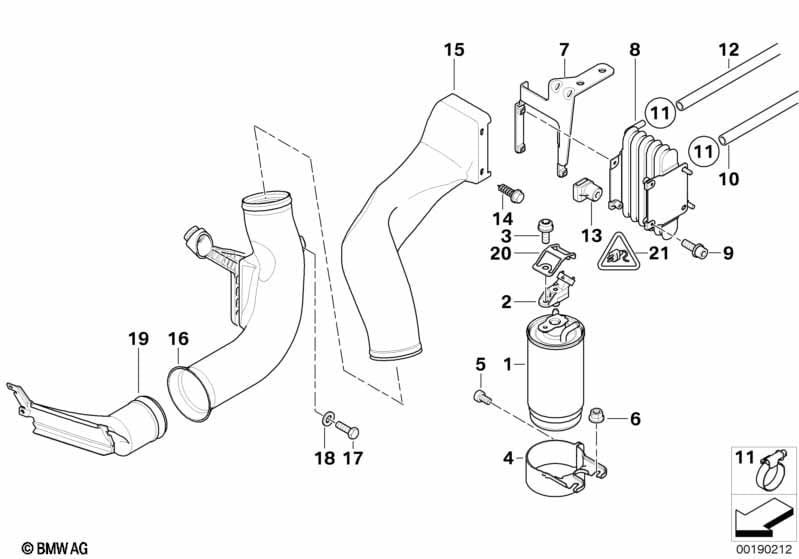

This Fuel filter, fuel cooling technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel filter | 1 | 03/2000 | 13327787825 | $62.94 | Shop at ECS Tuning | ||||
| 02 | Pressure sensor | 1 | 03/2000 | 13327785354 | Shop at ECS Tuning | |||||
| 03 | Torx-bolt with washer | M6X18 | 1 | 03/2000 | 11617533344 | Shop at ECS Tuning | ||||
| 04 | Bracket fuel strainer | 1 | 03/2000 | 13327785463 | Shop at ECS Tuning | |||||
| 05 | Torx bolt | M6X14 | 1 | 03/2000 | 13322249444 | Shop at ECS Tuning | ||||
| 06 | Self-locking collar nut | M8-10 ZNS3 | 1 | 03/2000 | 07119905374 | Shop at ECS Tuning | ||||
| 07 | Bracket, fuel radiator | 1 | 03/2000 | 13322248272 | Shop at ECS Tuning | |||||
| 08 | Fuel radiator | 1 | 03/2000 | 13327792140 | Shop at ECS Tuning | |||||
| 09 | Torx bolt | M6X14 | 3 | 03/2000 | 13322249444 | Shop at ECS Tuning | ||||
| 10 | Hose elbow | 1 | 03/2000 | 13901742610 | Shop at ECS Tuning | |||||
| 11 | Hose clamp | L12-15 | 2 | 03/2000 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 12 | Fuel hose | 8X13MMX1000 | X | 03/2000 | 13537563456 | $44.77 | Shop at ECS Tuning | |||
| 13 | Plastic nut | 4 | 03/2000 | 13322249575 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | TS5X17 SW8 D=16 | 4 | 03/2000 | 07149126885 | $0.49 | Shop at ECS Tuning | |||
| 15 | Air duct | 1 | 03/2000 | 13322247826 | Shop at ECS Tuning | |||||
| 16 | Air duct | 1 | 03/2000 | 13322247825 | Shop at ECS Tuning | |||||
| 17 | Hex bolt | M6X30-8.8-ZNS3 | 2 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 18 | Washer | A6,4-200HV-ZNS3 | 2 | 03/2000 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 19 | Alternator air duct | 1 | 03/2000 | 51118160855 | $10.26 | Shop at ECS Tuning | ||||
| 20 | Bow | 1 | 03/2000 | 13327792163 | Shop at ECS Tuning | |||||
| 21 | Socket housing | 3-POLIG | 1 | 03/2000 | 12517788176 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bushing contact | 0,35 MM² | 1 | 03/2000 | 12512247474 | $2.03 | Shop at ECS Tuning | |||
| -- | Bushing contact | 1,5 - 2,5 MM² | 1 | 03/2000 | 12512247475 | $2.03 | Shop at ECS Tuning | |||
| -- | Grommet | 1 | 03/2000 | 12517785093 | Shop at ECS Tuning | |||||
