Fuel filter, pressure regulator for BMW 3 Series E46 330Ci

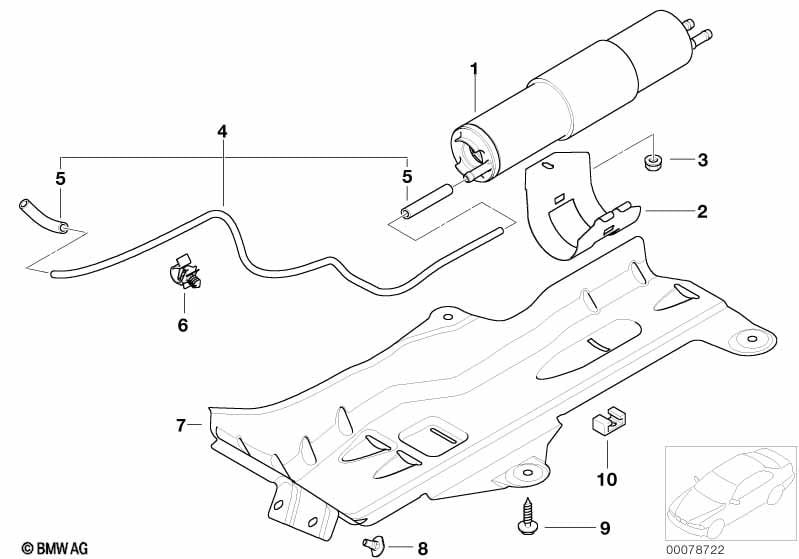

This Fuel filter, pressure regulator technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | for continuation of fuel pipe see HG 16 | |||||||||
| 01 | Fuel filter with pressure regulator | D=55MM/L=315MM | 1 | 13327512019 | $96.84 | Shop at ECS Tuning | ||||
| 02 | Bracket fuel strainer | D=55MM | 1 | 13321435583 | $16.33 | Shop at ECS Tuning | ||||
| 03 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 04 | Vacuum pipe | 1 | 13327561060 | $7.78 | Shop at ECS Tuning | |||||
| 05 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 06 | Clip retainer | 2 | 61138368029 | $0.43 | Shop at ECS Tuning | |||||
| 07 | Fuel filter cover | 1 | 13328230397 | $22.38 | Shop at ECS Tuning | |||||
| 07 | Fuel filter cover | 1 | 13325A5EA65 | Shop at ECS Tuning | ||||||
| 08 | Hexagon nut with collar | 2 | 07147154227 | $0.62 | Shop at ECS Tuning | |||||
| 09 | Hex head screw with washer | ST4,8X16MM | 3 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Prestol-cage | ST4,8-2 | 3 | 07129904323 | $0.27 | Shop at ECS Tuning | ||||
