Fuel filter, pressure regulator for BMW 5 Series E39 520i (2003)

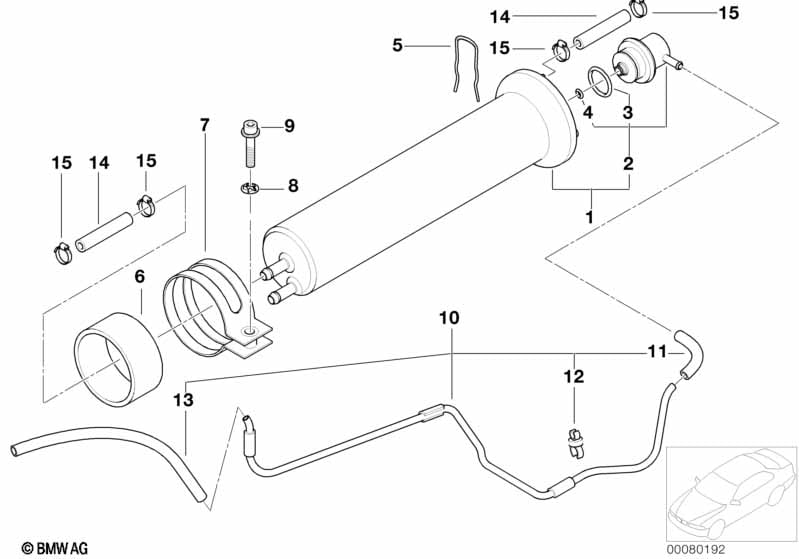

This Fuel filter, pressure regulator technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel filter with pressure regulator | 1 | 13321709535 | $96.84 | Shop at ECS Tuning | |||||
| 02 | Pressure regulator | 1 | 13531436110 | $75.10 | Shop at ECS Tuning | |||||
| 03 | O-ring | 20X2,5 | 1 | 13531720251 | $4.38 | Shop at ECS Tuning | ||||
| 04 | O-ring | 5X1,5 | 1 | 13531720252 | $3.75 | Shop at ECS Tuning | ||||
| 05 | Clamping bracket | 1 | 13321440346 | $1.82 | Shop at ECS Tuning | |||||
| 06 | Damper ring | D=55MM | 1 | 13321734056 | $2.73 | Shop at ECS Tuning | ||||
| 07 | Bracket fuel strainer | D=55MM | 1 | 13321702583 | $16.33 | Shop at ECS Tuning | ||||
| 08 | Circlip | M6 | 1 | 13321440349 | $0.80 | Shop at ECS Tuning | ||||
| 09 | Screw | 1 | 13321440348 | $2.08 | ENDED | Shop at ECS Tuning | ||||
| 10 | Vacuum pipe | 1 | 13327503684 | $21.13 | Shop at ECS Tuning | |||||
| 11 | Hose | 1 | 13321437801 | $24.87 | Shop at ECS Tuning | |||||
| 12 | Holder | 1 | 62121364482 | $1.17 | Shop at ECS Tuning | |||||
| 13 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 14 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 15 | Hose clamp | L12-15 | 4 | 07129952104 | $1.18 | Shop at ECS Tuning |
