Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 3 Series E46 318i (2003)

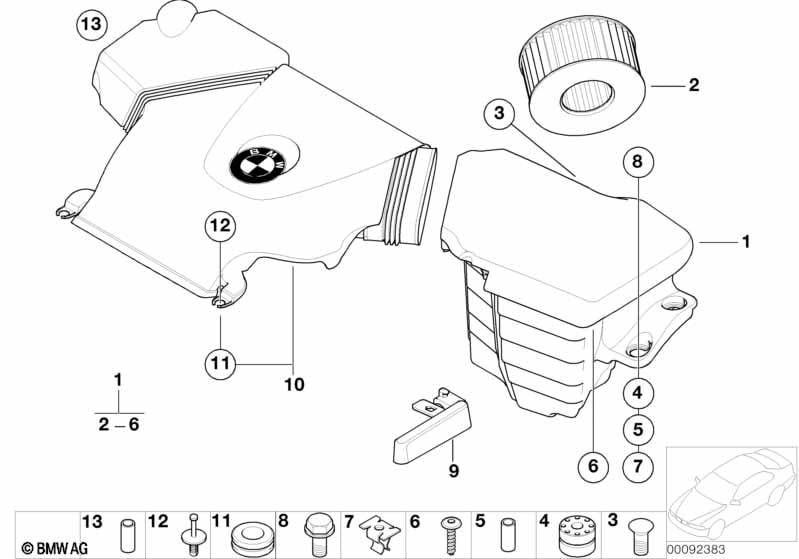

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 13717508710 | $278.31 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 01 | Intake muffler | 1 | 13717509543 | Shop at ECS Tuning | ||||||
| 02 | Air filter element | 1 | 13717503141 | $24.30 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 02 | Air filter element | 1 | 13717509544 | $24.30 | Shop at ECS Tuning | |||||
| 03 | Screw | 2 | 13717509678 | Shop at ECS Tuning | ||||||
| 04 | Rubber grommet | 2 | 13711742771 | $4.36 | Shop at ECS Tuning | |||||
| 05 | Spacer sleeve | 2 | 13717522371 | Shop at ECS Tuning | ||||||
| 06 | Screw for thermoplastic plastics | NS-TS5X20-ZNS3 | 7 | 07129904960 | $1.53 | Shop at ECS Tuning | ||||
| 07 | Prestol-cage | M6 ZNS3 | 2 | 32411095443 | $1.48 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X35-U2-8.8 | 2 | 07119903001 | $0.53 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | 1 | 13717502564 | $11.46 | Shop at ECS Tuning | |||||
| 10 | Intake manifold | 1 | 13717508711 | $79.63 | Shop at ECS Tuning | |||||
| 11 | Rubber grommet | 2 | 07147267586 | Shop at ECS Tuning | ||||||
| 12 | Expanding rivet | 2 | 51471919209 | $0.45 | Shop at ECS Tuning | |||||
| 13 | Rubber grommet | 1 | 11127501588 | $1.07 | Shop at ECS Tuning | |||||
