Hot-film air mass meter for BMW 3 Series E46 318i (2005)

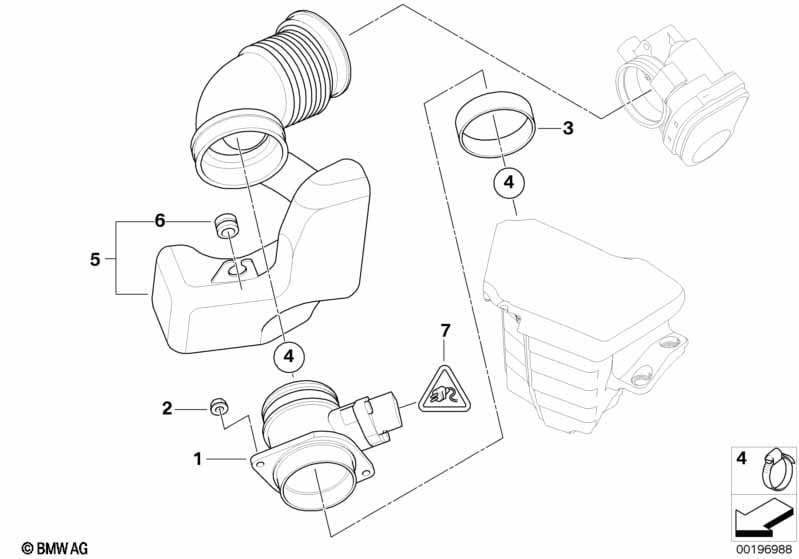

This Hot-film air mass meter technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.

Hot-film air mass meter
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Hot-film air mass meter 1 13627566986 $402.32 Shop at ECS Tuning
02 Hex nut M6-8-ZNNIV SI 2 07119905543 $0.38 Shop at ECS Tuning
03 Gasket ring 1 13712249212 Shop at ECS Tuning
04 Hose clamp L77-84 2 07129952131 $1.78 Shop at ECS Tuning
05 Rubber boot with resonator 1 13717506181 $43.19 Shop at ECS Tuning
06 Rubber grommet 1 11127501588 $1.07 Shop at ECS Tuning
07 Socket housing 1 12527507256 Shop at ECS Tuning
only in conjunction with
-- Socket terminal SLK 2.8 ELA with wire 0,2- 0,5MM²/AG X 12520143427 $2.03 Shop at ECS Tuning

See Also

Frequently Asked Questions

What assembly is shown in the BMW 3 Series E46 318i Hot-film air mass meter?
This technical diagram illustrates the Hot-film air mass meter within the Fuel preparation system group for the 3 Series E46 318i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Hot-film air mass meter (Part #13627566986).
Which models use the hardware listed in this Hot-film air mass meter?
The hardware and components featured in the Hot-film air mass meter are specific to the 3 Series E46 318i produced during 2005. These technical specifications ensure that parts like the Hot-film air mass meter (13627566986) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Hot-film air mass meter assembly?
Each item in the Hot-film air mass meter corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Hot-film air mass meter by locating its position on the schematic, which then links to the official BMW part number 13627566986 for the Fuel preparation system section.
