Fuel filter, preheating valve for BMW 3 Series E46 318d (2005)

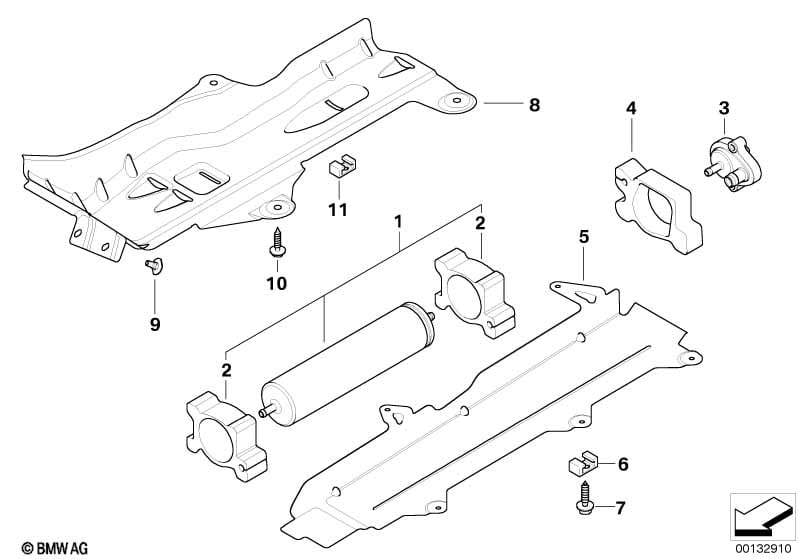

This Fuel filter, preheating valve technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel filter | 1 | 09/2001 | 13327794549 | $48.98 | Shop at ECS Tuning | ||||
| 02 | Damper rubber | 2 | 09/2001 | 13327794550 | Shop at ECS Tuning | |||||
| 03 | Valve preheating | 1 | 09/2001 | 13327787822 | $22.88 | Shop at ECS Tuning | ||||
| 04 | Damper rubber | 1 | 09/2001 | 13327787880 | Shop at ECS Tuning | |||||
| 05 | Fuel filter cover | 1 | 09/2001 | 13327794548 | Shop at ECS Tuning | |||||
| 06 | Prestol-cage | ST4,8-2 | 5 | 09/2001 | 07129904323 | $0.27 | Shop at ECS Tuning | |||
| 07 | Hex head screw with washer | ST4,8X16MM | 5 | 09/2001 | 07147129160 | $0.36 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318d Fuel filter, preheating valve?
- This technical diagram illustrates the Fuel filter, preheating valve within the Fuel preparation system group for the 3 Series E46 318d produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Fuel filter (Part #13327794549).
- Which models use the hardware listed in this Fuel filter, preheating valve?
- The hardware and components featured in the Fuel filter, preheating valve are specific to the 3 Series E46 318d produced during 2005. These technical specifications ensure that parts like the Fuel filter (13327794549) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel filter, preheating valve assembly?
- Each item in the Fuel filter, preheating valve corresponds to the numbered list below the illustration. For the 3 Series E46 318d, you can identify the Fuel filter by locating its position on the schematic, which then links to the official BMW part number 13327794549 for the Fuel preparation system section.
