Mass air flow sensor/intake silencer for BMW 3 Series E46 320Cd (2003)

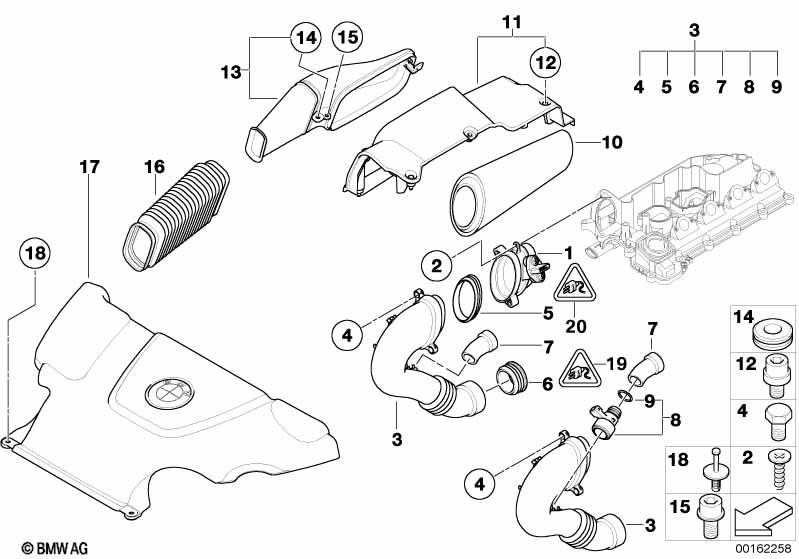

This Mass air flow sensor/intake silencer technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hot-film air mass meter | 1 | 09/2001 | 13627787076 | $402.32 | SI 130101(690) | Shop at ECS Tuning | |||
| For vehicles with EU4 exhaust emissions standard |
S167A=Yes |
|||||||||
| 01 | Hot-film air mass meter | 1 | 09/2001 | 13627788744 | Shop at ECS Tuning | |||||
| 02 | Plastic bolt | 5,0X19,5 | 2 | 09/2001 | 11127805414 | $1.58 | Shop at ECS Tuning | |||
| 03 | Air tube | 1 | 09/2001 | 13717790552 | $74.77 | Shop at ECS Tuning | ||||
| For vehicles with Cold-climate version |
S842A=Yes |
|||||||||
| 03 | Air tube | 1 | 09/2001 | 13717790553 | $92.91 | +core | Shop at ECS Tuning | |||
| 04 | ASA-Bolt | 2 | 09/2001 | 11127803813 | $3.17 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | 1 | 09/2001 | 13712247395 | Shop at ECS Tuning | |||||
| 06 | Gasket ring | 1 | 09/2001 | 13712247398 | $12.63 | Shop at ECS Tuning | ||||
| 07 | Hose | 1 | 09/2001 | 13717787863 | Shop at ECS Tuning | |||||
| For vehicles with Cold-climate version |
S842A=Yes |
|||||||||
| 08 | Heater element | 1 | 09/2001 | 13717787941 | $62.02 | +core | Shop at ECS Tuning | |||
| 09 | O-ring | 1 | 09/2001 | 13717787197 | $3.75 | Shop at ECS Tuning | ||||
| 10 | Air filter element | 1 | 09/2001 | 13712246997 | $49.84 | Shop at ECS Tuning | ||||
| 11 | Cover | 1 | 09/2001 | 13717787254 | Shop at ECS Tuning | |||||
| 12 | ASA-Bolt | 4 | 09/2001 | 11127803813 | $3.17 | Shop at ECS Tuning | ||||
| 13 | Intake manifold | 1 | 09/2001 | 13717787518 | $24.86 | Shop at ECS Tuning | ||||
| 14 | Rubber grommet | 1 | 09/2001 | 07147267586 | Shop at ECS Tuning | |||||
| 15 | Fillister head with washer | M6X20-ZNNID SW | 1 | 09/2001 | 07119906086 | $0.47 | Shop at ECS Tuning | |||
| 16 | Rubber boot | 1 | 09/2001 | 13712247406 | Shop at ECS Tuning | |||||
| 17 | Suction hood | 1 | 09/2001 | 13717787132 | $51.89 | ENDED | Shop at ECS Tuning | |||
| 18 | Expanding rivet | 2 | 09/2001 | 51471919209 | $0.45 | Shop at ECS Tuning | ||||
| 19 | Socket housing | 2 POL. | 1 | 09/2001 | 12521427787 | $1.73 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,2- 0,5MM²/AG | 1 | 09/2001 | 12520143427 | $2.03 | Shop at ECS Tuning | |||
Notes
- SI = Service Information
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320Cd Mass air flow sensor/intake silencer?
- This technical diagram illustrates the Mass air flow sensor/intake silencer within the Fuel preparation system group for the 3 Series E46 320Cd produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Hot-film air mass meter (Part #13627787076).
- Which models use the hardware listed in this Mass air flow sensor/intake silencer?
- The hardware and components featured in the Mass air flow sensor/intake silencer are specific to the 3 Series E46 320Cd produced during 2003. These technical specifications ensure that parts like the Hot-film air mass meter (13627787076) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mass air flow sensor/intake silencer assembly?
- Each item in the Mass air flow sensor/intake silencer corresponds to the numbered list below the illustration. For the 3 Series E46 320Cd, you can identify the Hot-film air mass meter by locating its position on the schematic, which then links to the official BMW part number 13627787076 for the Fuel preparation system section.
