Fuel filter for BMW 5 Series E60 520d (2007)

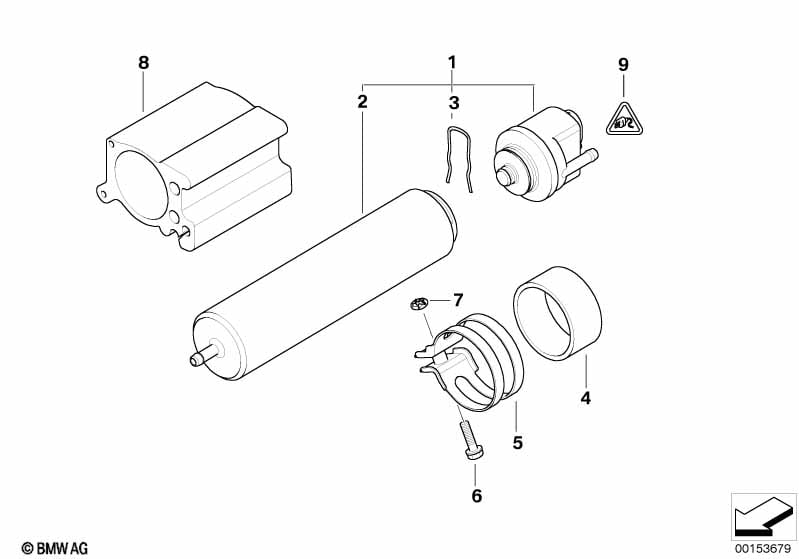

This Fuel filter technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel strainer with heating | 1 | 13328512369 | Shop at ECS Tuning | ||||||
| 02 | Fuel filter cartridge | 1 | 13327822499 | Shop at ECS Tuning | ||||||
| 03 | Clamping bracket | 1 | 13327789220 | Shop at ECS Tuning | ||||||
| 04 | Damper ring | D=55MM | 1 | 13321734056 | $2.73 | Shop at ECS Tuning | ||||
| 05 | Bracket fuel strainer | 1 | 13327789385 | Shop at ECS Tuning | ||||||
| 06 | Torx-bolt with washer | M6X18-A2 | 1 | 13327795071 | Shop at ECS Tuning | |||||
| 07 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Universal socket housing uncoded | 4 POL. | 1 | 61138367076 | $7.03 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 ELA with cable | 1,0-2,5 MM² | 4 | 61130007571 | $2.65 | Shop at ECS Tuning | ||||
| -- | Cable strap with bracket | 3 | 61136913733 | $0.63 | Shop at ECS Tuning | |||||
| -- | Corrugated tubing, slotted | Ø 8,5MM | 1 | 61136933301 | $1.58 | Shop at ECS Tuning | ||||
| -- | Cable holder | 1 | 61108380762 | $0.35 | Shop at ECS Tuning | |||||
