Hot-film air mass meter/clean air pipe for BMW 7 Series E65 740d (2005)

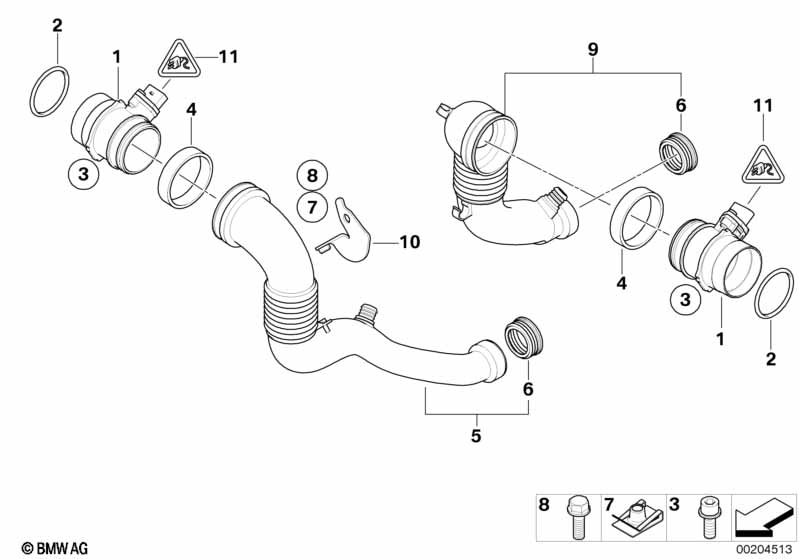

This Hot-film air mass meter/clean air pipe technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hot-film air mass meter | 2 | 13628509724 | Shop at ECS Tuning | ||||||
| 02 | O-ring | 79X6MM | 2 | 13711720540 | $2.48 | Shop at ECS Tuning | ||||
| 03 | Fillister head with washer | M6X25-U2 | 4 | 07119905014 | $1.54 | Shop at ECS Tuning | ||||
| 04 | Gasket | 2 | 13717789065 | Shop at ECS Tuning | ||||||
| 05 | Filtered air pipe | 1 | 13717787999 | ENDED, +core | Shop at ECS Tuning | |||||
| 06 | Gasket ring | 2 | 13712247398 | $12.63 | Shop at ECS Tuning | |||||
| 07 | C-clip nut | M6-ZNS3 | 1 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X18-U1 | 1 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Filtered air pipe | 1 | 13717788004 | +core | Shop at ECS Tuning | |||||
| 11 | Receptacle housing | 4-POLIG | 2 | 13627789318 | $3.75 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,5- 1,0 MM²/AG | 8 | 12520143433 | $4.00 | Shop at ECS Tuning | ||||
| -- | Protection cap | 2 | 12517788842 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
