High-pressure pump for BMW 7 Series E66 760Li (2005)

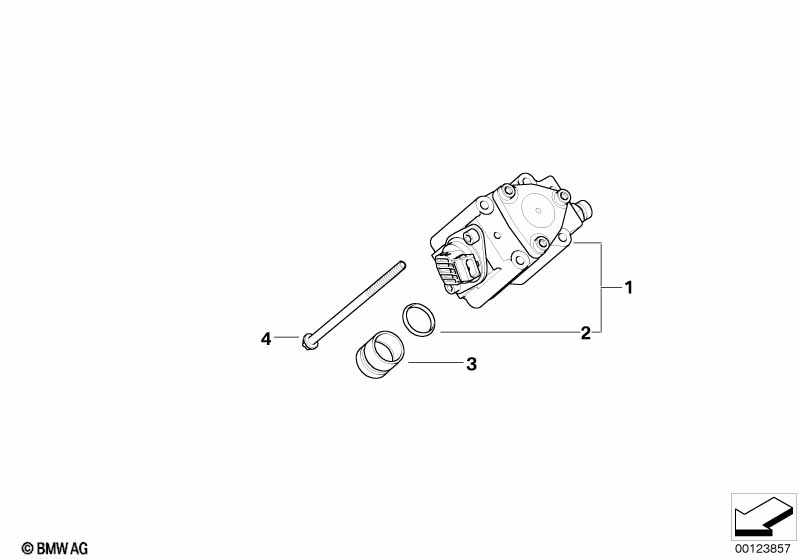

This High-pressure pump technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Not offered by BMW | 2 | 09/2006 | 84210300311 | ENDED | Shop at ECS Tuning | ||||
| 02 | O-ring | 2 | 13517528408 | $3.75 | Shop at ECS Tuning | |||||
| 03 | Valve lifter | 2 | 13517521888 | $35.68 | Shop at ECS Tuning | |||||
| 04 | Torx-bolt with washer | M6X90-U1-ZNS3 | 8 | 07129904075 | $2.05 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E66 760Li High-pressure pump?
- This technical diagram illustrates the High-pressure pump within the Fuel preparation system group for the 7 Series E66 760Li produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Not offered by BMW (Part #84210300311).
- Which models use the hardware listed in this High-pressure pump?
- The hardware and components featured in the High-pressure pump are specific to the 7 Series E66 760Li produced during 2005. These technical specifications ensure that parts like the Not offered by BMW (84210300311) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the High-pressure pump assembly?
- Each item in the High-pressure pump corresponds to the numbered list below the illustration. For the 7 Series E66 760Li, you can identify the Not offered by BMW by locating its position on the schematic, which then links to the official BMW part number 84210300311 for the Fuel preparation system section.
