Fuel pipes / Mounting parts for BMW 3 Series E46 330Cd (2006)

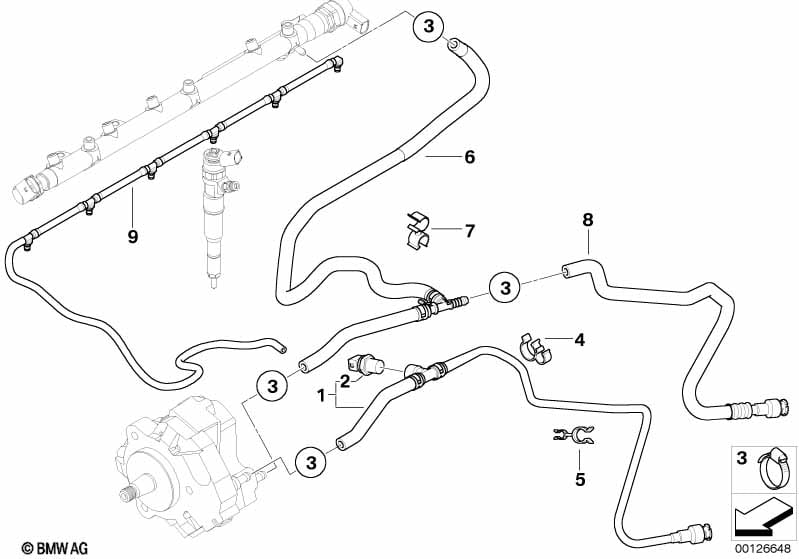

This Fuel pipes / Mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel feed line | 1 | 13537796790 | Shop at ECS Tuning | ||||||
| 02 | Sensor, fuel temperature | 1 | 13537789304 | $31.52 | Shop at ECS Tuning | |||||
| 03 | Hose clamp | L12-15 | 4 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 04 | Holder | 11,5/8,0MM | 1 | 61131369832 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | D=8MM/14MM | 1 | 11721164034 | $1.17 | Shop at ECS Tuning | ||||
| 06 | Fuel return line | 1 | 13537796791 | Shop at ECS Tuning | ||||||
| 07 | Hose clamp | D=13/D=11 | 1 | 16122229468 | $1.13 | Shop at ECS Tuning | ||||
| 08 | Fuel return line | 1 | 13537796792 | Shop at ECS Tuning | ||||||
| 09 | Overflow oil line | 1 | 13537790330 | Shop at ECS Tuning |
