Throttle Housing Assy for BMW 5 Series E28 535i (1987)

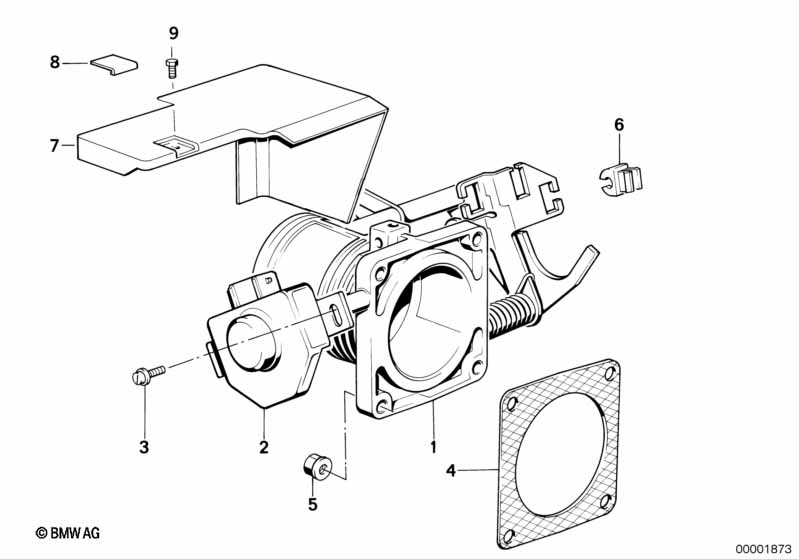

This Throttle Housing Assy technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Throttle Housing Assy Eh | CODE "R" | 1 | 09/1986 | 13541707678 | $235.57 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | Throttle Housing Assy Eh | CODE "R" | 1 | 09/1986 | 13541707678 | $235.57 | ENDED | Shop at ECS Tuning | ||
| 02 | Throttle valve switch | 1 | 13631273265 | $128.75 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Protection cap | L=17,5MM | 1 | 61131358603 | $5.32 | Shop at ECS Tuning | ||||
| -- | Plug housing | 1 | 12521706096 | $7.59 | Shop at ECS Tuning | |||||
| 03 | Fillister-head screw | M4 X 9,2 | 2 | 13541705562 | $0.93 | Shop at ECS Tuning | ||||
| 04 | Gasket Asbestos Free | 1 | 13541270894 | $2.82 | Shop at ECS Tuning | |||||
| 05 | Hex nut wiht flange | M8 | 4 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Bearing accelator bowden cable | SCHWARZ | 1 | 13541747519 | $0.58 | Shop at ECS Tuning | ||||
| 07 | Cover | 1 | 13541726433 | $16.22 | Shop at ECS Tuning | |||||
| 08 | Cap | D=3,5MM | 1 | 11611437560 | $3.39 | Shop at ECS Tuning | ||||
| 08 | Cap | D=5,0MM | 1 | 11611437694 | $3.39 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
