Valves/Pipes of fuel injection system for BMW 5 Series E28 528i (1988)

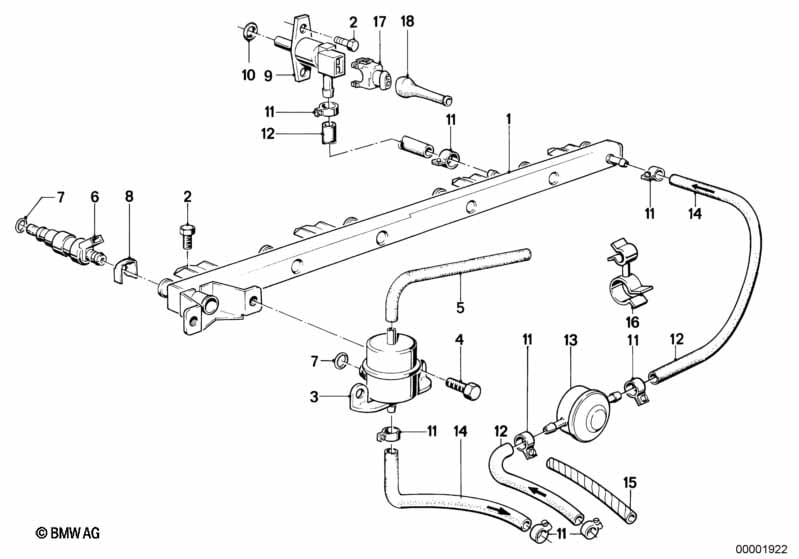

This Valves/Pipes of fuel injection system technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Injection tube | 1 | 13531717071 | $360.66 | Shop at ECS Tuning | |||||
| 03 | Pressure regulator | 3,0BAR | 1 | 13531722040 | $98.88 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt with washer | M6X12-Z3-1 | 2 | 07119915033 | $1.07 | Shop at ECS Tuning | ||||
| 05 | Vacuum hose black | 3,3X1,75 | X | 51731257971 | $4.59 | ENDED | Shop at ECS Tuning | |||
| 05 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 06 | Injection valve | BOSCH | 6 | 01/1986 | 13641706176 | $113.07 | Shop at ECS Tuning | |||
| 07 | O-ring | 7,52X3,53 | X | 13641730767 | $3.75 | Shop at ECS Tuning | ||||
| 08 | Clamp | 6 | 13531274729 | $0.67 | Shop at ECS Tuning | |||||
| 09 | Starter valve | 1 | 13641358917 | $106.30 | Shop at ECS Tuning | |||||
| 10 | O-ring | 6.5X2.0 | 1 | 11611254062 | $1.33 | ENDED | Shop at ECS Tuning | |||
| 11 | Hose clamp | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 12 | Fuel hose | 561MM-920MM | 1 | 13311722565 | $45.38 | Shop at ECS Tuning | ||||
| 13 | Connection piece | 1 | 13311713470 | $2.13 | ENDED | Shop at ECS Tuning | ||||
| 14 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 15 | Spiral conduit | 100MM | 1 | 61131363375 | $2.66 | Shop at ECS Tuning | ||||
| 17 | Plug housing | 2 POL. | 7 | 12521706091 | $4.02 | Shop at ECS Tuning | ||||
| 18 | Protection cap | L=12,5MM | 7 | 61131358330 | $5.33 | Shop at ECS Tuning |
