Fuel strainer with heating for BMW 3 Series E92 330d (2010)

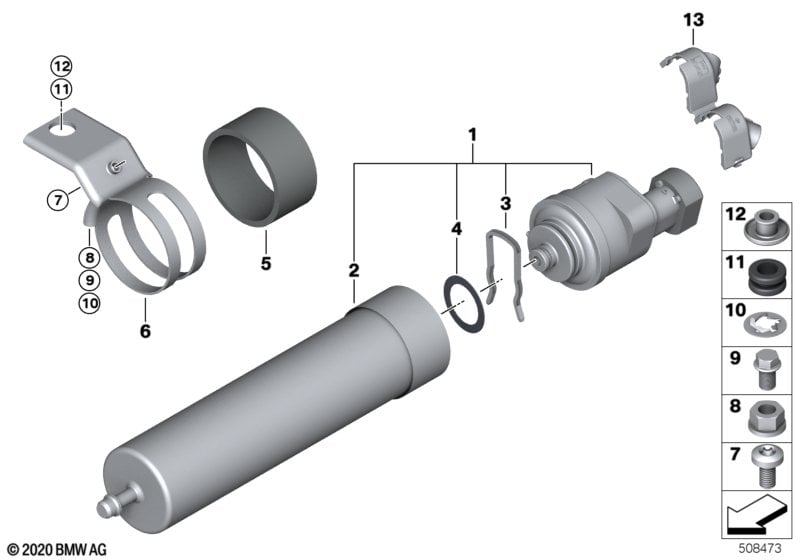

This Fuel strainer with heating technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel filter | 1 | 13328509765 | Shop at ECS Tuning | ||||||
| 02 | Fuel filter cartridge | 1 | 02/2010 | 08/2010 | 13328584874 | Shop at ECS Tuning | ||||
| 03 | Clamping bracket | 1 | 13327789220 | Shop at ECS Tuning | ||||||
| 05 | Damper ring | 1 | 13328585293 | Shop at ECS Tuning | ||||||
| 06 | Bracket fuel strainer | 1 | 03/2010 | 13328513540 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | ISA screw | M5X8-U1-A2-70 | 1 | 03/2010 | 07129905498 | Shop at ECS Tuning | ||||
| 07 | Countersunk screw | M4X8-A2 | 1 | 03/2010 | 13327795070 | $2.47 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Bracket fuel strainer | X | 03/2010 | 13328506072 | ENDED | Shop at ECS Tuning | ||||
| -- | Bracket fuel strainer | X | 03/2010 | 13328511901 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X20-U1-A2-70 | 1 | 07119906041 | $1.36 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
