Fuel injection system/Injection valve for BMW 1 Series E87 LCI 120i (2011)

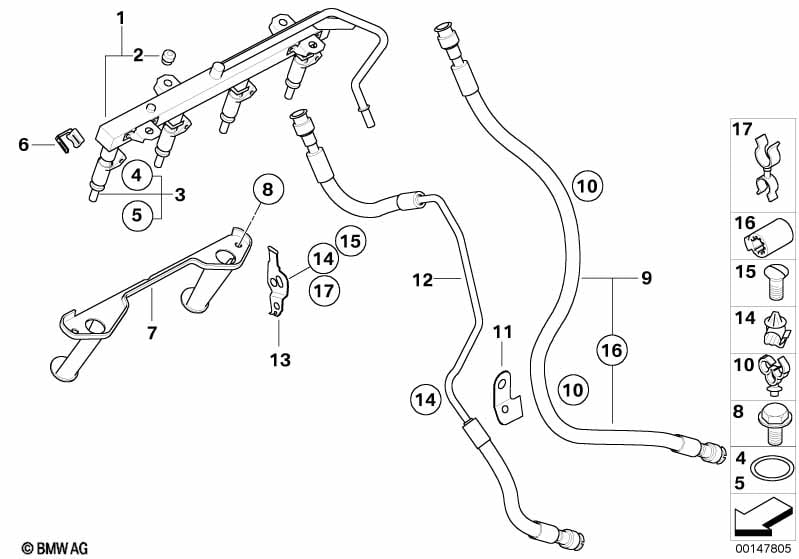

This Fuel injection system/Injection valve technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Injection tube | 1 | 13537530420 | Shop at ECS Tuning | ||||||
| 02 | Cap | 1 | 13537506155 | $2.97 | Shop at ECS Tuning | |||||
| 03 | Injection valve | 4 | 13537561277 | Shop at ECS Tuning | ||||||
| 04 | O-ring | 7,52X3,52 | 4 | 13641437487 | $3.75 | Shop at ECS Tuning | ||||
| 05 | O-ring | 8,54X3,10 | 4 | 13647531313 | $3.75 | Shop at ECS Tuning | ||||
| 06 | Clamp | 4 | 13537528539 | $0.58 | Shop at ECS Tuning | |||||
| 07 | Bracket, injection tube | 1 | 13537545355 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt with washer | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 12 | Fuel pipe | 1 | 07/2005 | 13537552891 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hose clamp | D=13/D=11 | 1 | 07/2005 | 16122229468 | $1.13 | Shop at ECS Tuning | |||
| -- | Spacer | 1 | 07/2005 | 13537547161 | Shop at ECS Tuning | |||||
| 13 | Fuel pipe bracket | 1 | 13537529759 | Shop at ECS Tuning | ||||||
| 14 | Clip | 2 | 13537529766 | Shop at ECS Tuning | ||||||
| 15 | Screw | K60X22 | 1 | 11617533331 | $0.75 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 120i Fuel injection system/Injection valve?
- This technical diagram illustrates the Fuel injection system/Injection valve within the Fuel preparation system group for the 1 Series E87 LCI 120i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Injection tube (Part #13537530420).
- Which models use the hardware listed in this Fuel injection system/Injection valve?
- The hardware and components featured in the Fuel injection system/Injection valve are specific to the 1 Series E87 LCI 120i produced during 2011. These technical specifications ensure that parts like the Injection tube (13537530420) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel injection system/Injection valve assembly?
- Each item in the Fuel injection system/Injection valve corresponds to the numbered list below the illustration. For the 1 Series E87 LCI 120i, you can identify the Injection tube by locating its position on the schematic, which then links to the official BMW part number 13537530420 for the Fuel preparation system section.
