Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 5 Series E60 LCI 520d (2009)

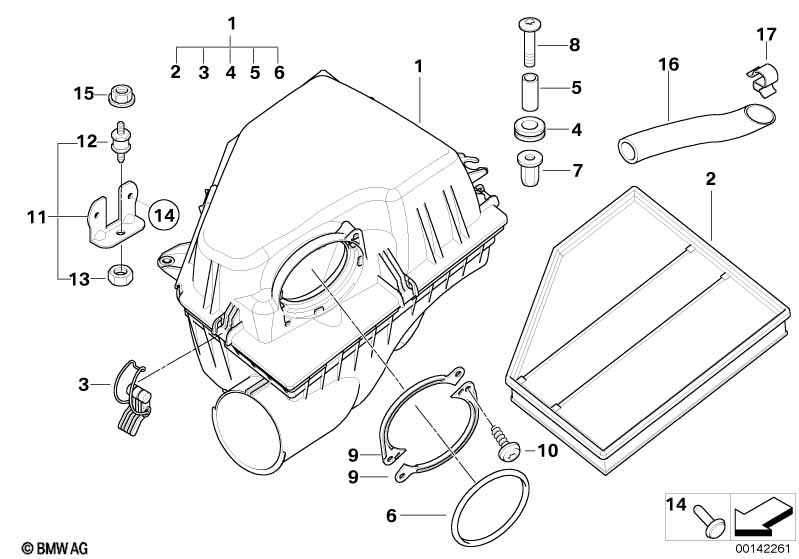

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 13717792416 | Shop at ECS Tuning | ||||||
| 02 | Air filter element | 1 | 13717793647 | Shop at ECS Tuning | ||||||
| 03 | Tensioner | 5 | 13717525713 | $1.41 | Shop at ECS Tuning | |||||
| 04 | Rubber grommet | 1 | 13711702508 | $3.34 | Shop at ECS Tuning | |||||
| 05 | Sleeve | 1 | 13717525711 | $3.95 | Shop at ECS Tuning | |||||
| 06 | O-ring | 92X6MM | 1 | 13717794556 | $5.63 | Shop at ECS Tuning | ||||
| 07 | Blind rivet nut, flat headed | M6 | 1 | 32411094185 | $1.13 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | 1 | 07147072901 | $0.53 | Shop at ECS Tuning | |||||
| 10 | Screw for thermoplastic plastics | 60X22 | 2 | 13627805193 | $0.53 | Shop at ECS Tuning | ||||
| 11 | Bracket. intake silencer | 1 | 51717900480 | $13.45 | Shop at ECS Tuning | |||||
| 12 | Rubber Mounting | 1 | 11617830735 | $7.60 | Shop at ECS Tuning | |||||
| 13 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 14 | Blind rivet | 2 | 51417068752 | $0.37 | Shop at ECS Tuning | |||||
| 15 | Nut | M6 | 1 | 07146973709 | $0.27 | Shop at ECS Tuning |
