Throttle Housing Assy for BMW 3 Series E90 325xi (2008)

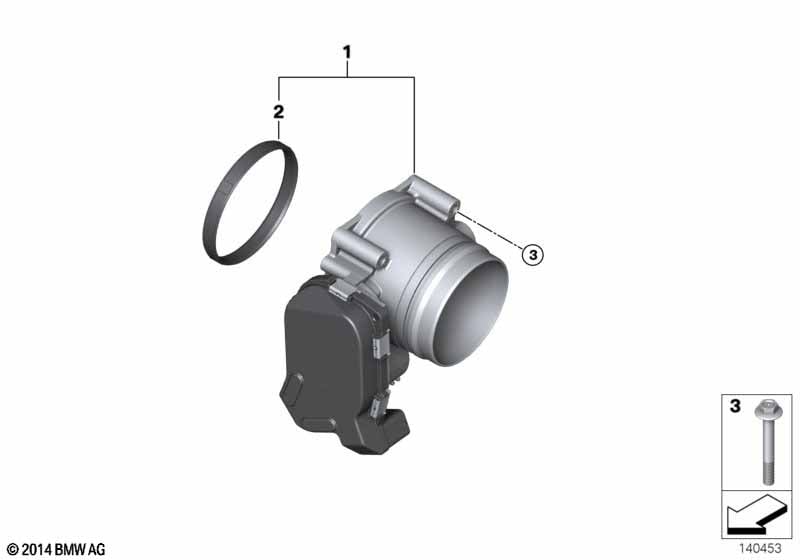

This Throttle Housing Assy technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Throttle Housing Assy | 1 | 13547556118 | $362.72 | Shop at ECS Tuning | |||||
| only applies to 13 54 7 556 118 up to Modification Index 03 |
||||||||||
| 02 | Preformed seal | 1 | 10/2009 | 13547522361 | $11.89 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M6X50-ZNNIV SI | 4 | 07119905377 | $0.53 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 325xi Throttle Housing Assy?
- This technical diagram illustrates the Throttle Housing Assy within the Fuel preparation system group for the 3 Series E90 325xi produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Throttle Housing Assy (Part #13547556118).
- Which models use the hardware listed in this Throttle Housing Assy?
- The hardware and components featured in the Throttle Housing Assy are specific to the 3 Series E90 325xi produced during 2008. These technical specifications ensure that parts like the Throttle Housing Assy (13547556118) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Throttle Housing Assy assembly?
- Each item in the Throttle Housing Assy corresponds to the numbered list below the illustration. For the 3 Series E90 325xi, you can identify the Throttle Housing Assy by locating its position on the schematic, which then links to the official BMW part number 13547556118 for the Fuel preparation system section.
