Fuel lines for BMW 3 Series E90 320d (2007)

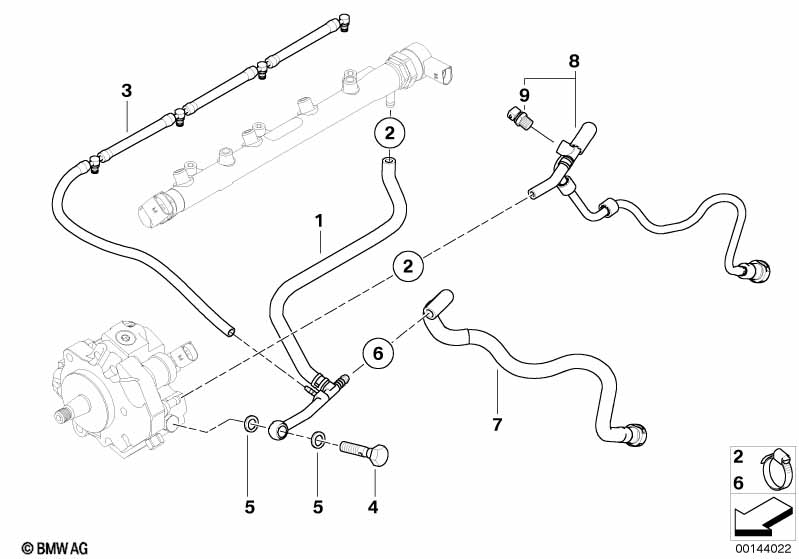

This Fuel lines technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel return line | 1 | 13537797293 | Shop at ECS Tuning | ||||||
| 02 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 03 | Overflow oil line | 1 | 13537793466 | Shop at ECS Tuning | ||||||
| 04 | Hollow bolt | 1 | 07119905427 | $2.25 | Shop at ECS Tuning | |||||
| 05 | Gasket ring | A12X17-CU SN | 2 | 13537801526 | $0.55 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | L15-19 | 1 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 07 | Fuel return line | 1 | 13537801659 | ENDED | Shop at ECS Tuning | |||||
| 08 | Fuel feed line | 1 | 13537801658 | ENDED | Shop at ECS Tuning | |||||
| 09 | Sensor, fuel temperature | 1 | 13537789304 | $31.52 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 320d Fuel lines?
- This technical diagram illustrates the Fuel lines within the Fuel preparation system group for the 3 Series E90 320d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Fuel return line (Part #13537797293).
- Which models use the hardware listed in this Fuel lines?
- The hardware and components featured in the Fuel lines are specific to the 3 Series E90 320d produced during 2007. These technical specifications ensure that parts like the Fuel return line (13537797293) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel lines assembly?
- Each item in the Fuel lines corresponds to the numbered list below the illustration. For the 3 Series E90 320d, you can identify the Fuel return line by locating its position on the schematic, which then links to the official BMW part number 13537797293 for the Fuel preparation system section.
