Intake muffler/Filter cartridge/HFM for BMW 3 Series E90 LCI 330i (2010)

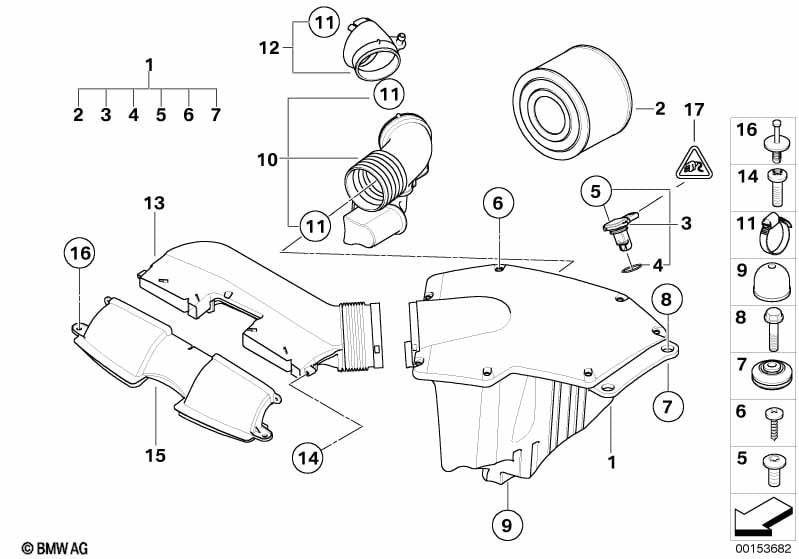

This Intake muffler/Filter cartridge/HFM technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 09/2005 | 13717552437 | Shop at ECS Tuning | |||||
| For vehicles with National version China or National version japan or Equipment for leaded fuel or Low compression engine |
L8AAA=Yes L807A=Yes S199A=Yes S858A=Yes |
|||||||||
| 01 | Intake muffler | 1 | 13717555287 | Shop at ECS Tuning | ||||||
| 02 | Air filter element | 1 | 13717536006 | $31.24 | Shop at ECS Tuning | |||||
| 03 | Intake air temperature sensor | 1 | 09/2005 | 13627547822 | Shop at ECS Tuning | |||||
| For vehicles with National version China or National version japan or Equipment for leaded fuel or Low compression engine |
L8AAA=Yes L807A=Yes S199A=Yes S858A=Yes |
|||||||||
| 03 | Hot-film air mass meter | 1 | 13627551638 | $306.24 | Shop at ECS Tuning | |||||
| 04 | O-ring | 1 | 13627532318 | $3.11 | Shop at ECS Tuning | |||||
| 05 | Torx screw | 5X18 | 2 | 13627531817 | $0.60 | Shop at ECS Tuning | ||||
| 06 | Fillister head screw | 7 | 13717545438 | $1.54 | Shop at ECS Tuning | |||||
| 07 | Decoupling element | 2 | 13717539911 | $5.73 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X25-ZNNIV SI | 2 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 09 | Rubber buffer | 1 | 13717539903 | $6.32 | Shop at ECS Tuning | |||||
| 10 | Rubber boot | 1 | 13717536004 | $37.68 | Shop at ECS Tuning | |||||
| 11 | Hose clamp | 80-100X9 | 3 | 07119905469 | $1.82 | Shop at ECS Tuning | ||||
| 12 | Connector | 1 | 13717536002 | $11.38 | Shop at ECS Tuning | |||||
| 13 | Suction hood | 1 | 13717541737 | $56.91 | Shop at ECS Tuning | |||||
| 14 | Torx-bolt for plastic material | ISA L=25MM | 2 | 07147549513 | $0.29 | Shop at ECS Tuning | ||||
| 15 | Suction hood, front | 1 | 13717541738 | $56.91 | Shop at ECS Tuning | |||||
| 16 | Expanding rivet | 2 | 51471919209 | $0.45 | Shop at ECS Tuning | |||||
