Intake muffler/Filter cartridge/HFM for BMW 3 Series E93 328i (2010)

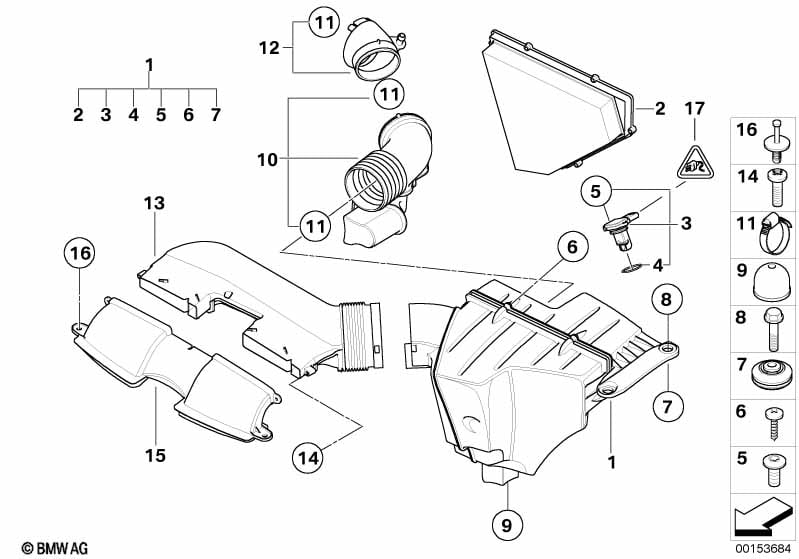

This Intake muffler/Filter cartridge/HFM technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 13717555288 | $525.31 | Shop at ECS Tuning | |||||
| 02 | Air filter element | 1 | 13717542294 | $28.50 | Shop at ECS Tuning | |||||
| 03 | Hot-film air mass meter | 1 | 13627551638 | $306.24 | Shop at ECS Tuning | |||||
| 04 | O-ring | 1 | 13627532318 | $3.11 | Shop at ECS Tuning | |||||
| 05 | Torx screw | 5X18 | 2 | 13627531817 | $0.60 | Shop at ECS Tuning | ||||
| 06 | Fillister head screw | 7 | 13717545438 | $1.54 | Shop at ECS Tuning | |||||
| 07 | Decoupling element | 2 | 13717539911 | $5.73 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X25-ZNNIV SI | 2 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 09 | Rubber buffer | 1 | 13717539903 | $6.32 | Shop at ECS Tuning | |||||
| 10 | Rubber boot | 1 | 13717536004 | $37.68 | Shop at ECS Tuning | |||||
| 11 | Hose clamp | 80-100X9 | 3 | 07119905469 | $1.82 | Shop at ECS Tuning | ||||
| 12 | Connector | 1 | 13717536002 | $11.38 | Shop at ECS Tuning | |||||
| 13 | Suction hood | 1 | 13717541737 | $56.91 | Shop at ECS Tuning | |||||
| 14 | Torx-bolt for plastic material | ISA L=25MM | 2 | 07147549513 | $0.29 | Shop at ECS Tuning | ||||
| 15 | Suction hood, front | 1 | 13717541738 | $56.91 | Shop at ECS Tuning | |||||
| 16 | Expanding rivet | 2 | 51471919209 | $0.45 | Shop at ECS Tuning | |||||
| 17 | Socket housing | 5-POLIG | 1 | 12527516864 | $2.53 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Single conductor seal | 0,13-0,35 MM² | 5 | 61138366247 | $0.18 | Shop at ECS Tuning | ||||
| -- | Contact bushing MLK 1.2 strand sealing | 0,35-0,5MM² AG | 5 | 61138722290 | Shop at ECS Tuning | |||||
| -- | Rubber grommet | 1 | 12527535589 | $0.88 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E93 328i Intake muffler/Filter cartridge/HFM?
- This technical diagram illustrates the Intake muffler/Filter cartridge/HFM within the Fuel preparation system group for the 3 Series E93 328i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Intake muffler (Part #13717555288).
- Which models use the hardware listed in this Intake muffler/Filter cartridge/HFM?
- The hardware and components featured in the Intake muffler/Filter cartridge/HFM are specific to the 3 Series E93 328i produced during 2010. These technical specifications ensure that parts like the Intake muffler (13717555288) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake muffler/Filter cartridge/HFM assembly?
- Each item in the Intake muffler/Filter cartridge/HFM corresponds to the numbered list below the illustration. For the 3 Series E93 328i, you can identify the Intake muffler by locating its position on the schematic, which then links to the official BMW part number 13717555288 for the Fuel preparation system section.
