Fuel lines for BMW 5 Series E60 LCI 535d (2009)

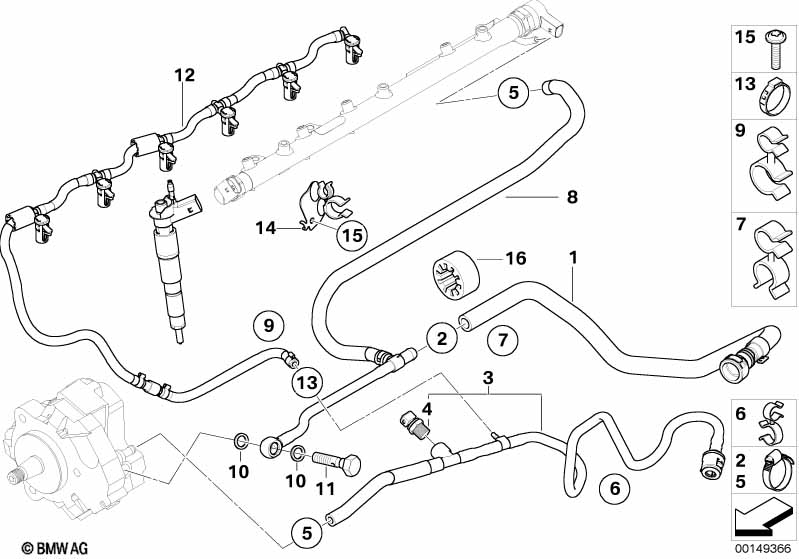

This Fuel lines technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel return line | 1 | 13537797541 | Shop at ECS Tuning | ||||||
| 02 | Hose clamp | L15-19 | 1 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 03 | Fuel feed line | 1 | 13537799973 | Shop at ECS Tuning | ||||||
| 04 | Sensor, fuel temperature | 1 | 13537789304 | $31.52 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | D=18/D=25 | 1 | 12511309471 | $1.50 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | D=18/D=10 | 1 | 13537789708 | Shop at ECS Tuning | |||||
| 07 | Clip | D=10/D=11 | 1 | 34337801414 | $1.49 | Shop at ECS Tuning | ||||
| 08 | Fuel return line | 1 | 13537796132 | Shop at ECS Tuning | ||||||
| 09 | Clip | D=10/D=11 | 1 | 34337801414 | $1.49 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Overflow oil line | X | 13537799869 | $144.18 | Shop at ECS Tuning | |||||
| 10 | Gasket ring | A12X17-CU SN | 2 | 13537801526 | $0.55 | Shop at ECS Tuning | ||||
| 11 | Hollow bolt | 1 | 07119905427 | $2.25 | Shop at ECS Tuning | |||||
| 12 | Overflow oil line | 1 | 13537799869 | $144.18 | Shop at ECS Tuning | |||||
| 13 | Hose clamp | 8,3-10 | 1 | 13537795244 | $0.77 | Shop at ECS Tuning | ||||
| 16 | Spacer | 1 | 13537799975 | $2.18 | Shop at ECS Tuning | |||||
