Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 3 Series E91 330d (2008)

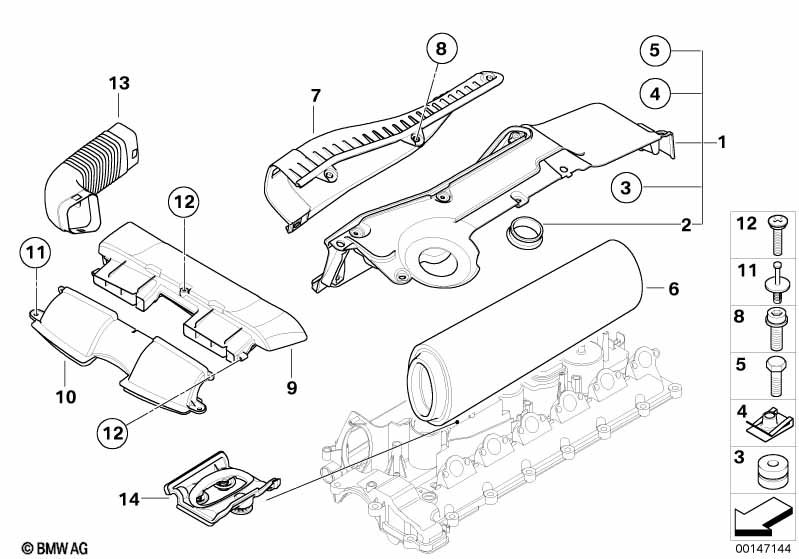

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, intake muffler | 1 | 13717793203 | Shop at ECS Tuning | ||||||
| 02 | Gasket | 1 | 13712248556 | $6.88 | Shop at ECS Tuning | |||||
| 03 | Rubber grommet | 1 | 11127501588 | $1.07 | Shop at ECS Tuning | |||||
| 04 | C-clip nut | M6-ZNS3 | 1 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 05 | ASA-Bolt | 5 | 11127803813 | $3.17 | Shop at ECS Tuning | |||||
| 06 | Air filter element | 1 | 13712247444 | $55.40 | Shop at ECS Tuning | |||||
| 07 | Intake manifold | 1 | 13717789109 | Shop at ECS Tuning | ||||||
| 08 | Fillister head with washer | M6X20-ZNNID SW | 3 | 07119906086 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Suction hood | 1 | 13717791985 | $68.18 | Shop at ECS Tuning | |||||
| 10 | Suction hood, front | 1 | 13717541738 | $56.91 | Shop at ECS Tuning | |||||
| 11 | Expanding rivet | 2 | 51471919209 | $0.45 | Shop at ECS Tuning | |||||
| 12 | Torx-bolt for plastic material | ISA L=25MM | 3 | 07147549513 | $0.29 | Shop at ECS Tuning | ||||
| 13 | Rubber boot | 1 | 13717790607 | Shop at ECS Tuning | ||||||
| For vehicles with Cold-climate version |
S842A=Yes |
|||||||||
| 14 | Plate with bypass valve | 1 | 13717795710 | ENDED, +core | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
