Mass air flow sensor/intake silencer for BMW 5 Series E61 520d

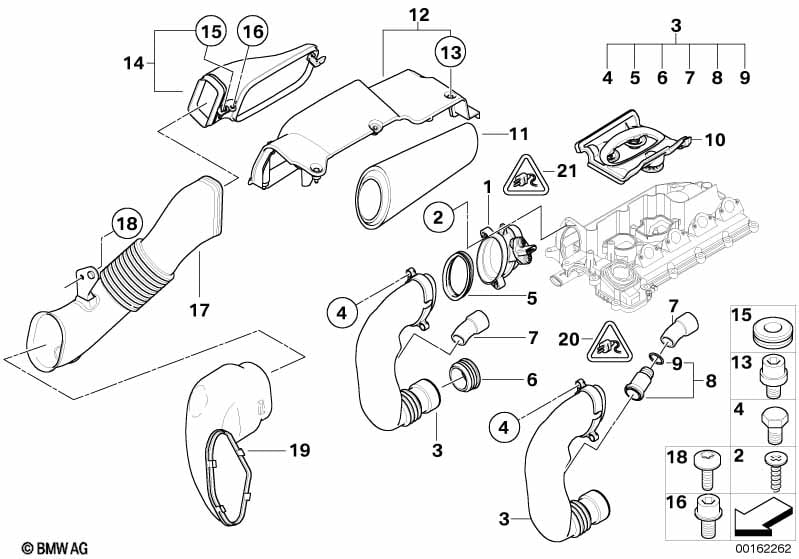

This Mass air flow sensor/intake silencer technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 520d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hot-film air mass meter | 1 | 13627788744 | Shop at ECS Tuning | ||||||
| 02 | Plastic bolt | 5,0X19,5 | 2 | 11127805414 | $1.58 | Shop at ECS Tuning | ||||
| 03 | Air tube | 1 | 13717790552 | $74.77 | Shop at ECS Tuning | |||||
| 04 | ASA-Bolt | 2 | 11127803813 | $3.17 | Shop at ECS Tuning | |||||
| 05 | Gasket ring | 1 | 13712247395 | Shop at ECS Tuning | ||||||
| 06 | Gasket ring | 1 | 13712247398 | $12.63 | Shop at ECS Tuning | |||||
| 07 | Hose | 1 | 13717787863 | Shop at ECS Tuning | ||||||
| 11 | Air filter element | 1 | 13712246997 | $49.84 | Shop at ECS Tuning | |||||
| 12 | Cover | 1 | 13717787254 | Shop at ECS Tuning | ||||||
| 13 | ASA-Bolt | 4 | 11127803813 | $3.17 | Shop at ECS Tuning | |||||
| 14 | Unfiltered air snorkel | 1 | 13717797956 | Shop at ECS Tuning | ||||||
| 15 | Rubber grommet | 1 | 07147267586 | Shop at ECS Tuning | ||||||
| 16 | Fillister head with washer | M6X20-ZNNID SW | 1 | 07119906086 | $0.47 | Shop at ECS Tuning | ||||
| 17 | Intake duct | 1 | 13717796270 | Shop at ECS Tuning | ||||||
| 18 | Fillister head screw | 1 | 07147072901 | $0.53 | Shop at ECS Tuning | |||||
| 19 | Intake duct | 1 | 13717796692 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 520d Mass air flow sensor/intake silencer?
- This technical diagram illustrates the Mass air flow sensor/intake silencer within the Fuel preparation system group for the 5 Series E61 520d. It provides a detailed exploded view of the components, identifying key parts such as the Hot-film air mass meter (Part #13627788744).
- Which models use the hardware listed in this Mass air flow sensor/intake silencer?
- The hardware and components featured in the Mass air flow sensor/intake silencer are specific to the 5 Series E61 520d. These technical specifications ensure that parts like the Hot-film air mass meter (13627788744) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mass air flow sensor/intake silencer assembly?
- Each item in the Mass air flow sensor/intake silencer corresponds to the numbered list below the illustration. For the 5 Series E61 520d, you can identify the Hot-film air mass meter by locating its position on the schematic, which then links to the official BMW part number 13627788744 for the Fuel preparation system section.
