Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 3 Series E90 LCI 335i (2011)

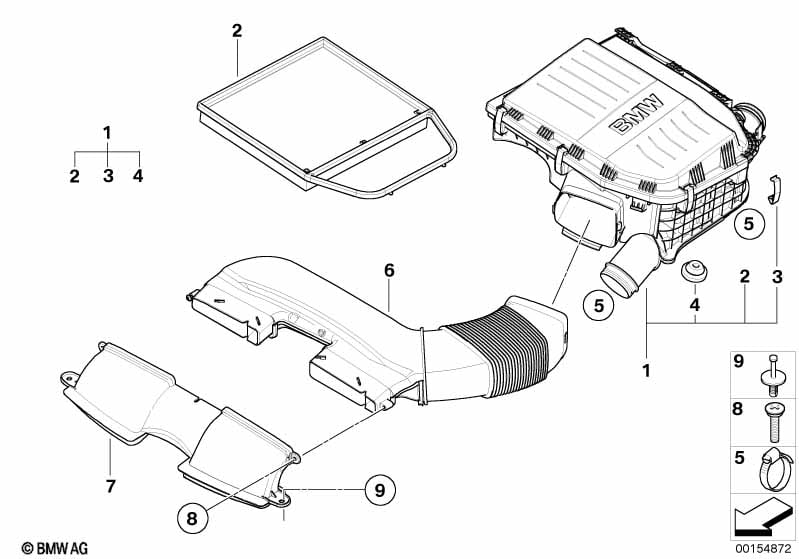

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 13717599284 | Shop at ECS Tuning | ||||||
| 02 | Air filter element | 1 | 13717599285 | Shop at ECS Tuning | ||||||
| 03 | Spring clip | L=42MM | 4 | 13711716113 | $1.16 | Shop at ECS Tuning | ||||
| 04 | Bump stop | 3 | 13717542860 | $3.41 | Shop at ECS Tuning | |||||
| 06 | Intake duct | 1 | 13717599282 | Shop at ECS Tuning | ||||||
| 07 | Suction hood, front | 1 | 13717541738 | $56.91 | Shop at ECS Tuning | |||||
| 08 | Torx-bolt for plastic material | ISA L=25MM | 2 | 07147549513 | $0.29 | Shop at ECS Tuning | ||||
| 09 | Expanding rivet | 2 | 51471919209 | $0.45 | Shop at ECS Tuning |
