High pressure accumulator/injector/line for BMW 3 Series E91 325d (2008)

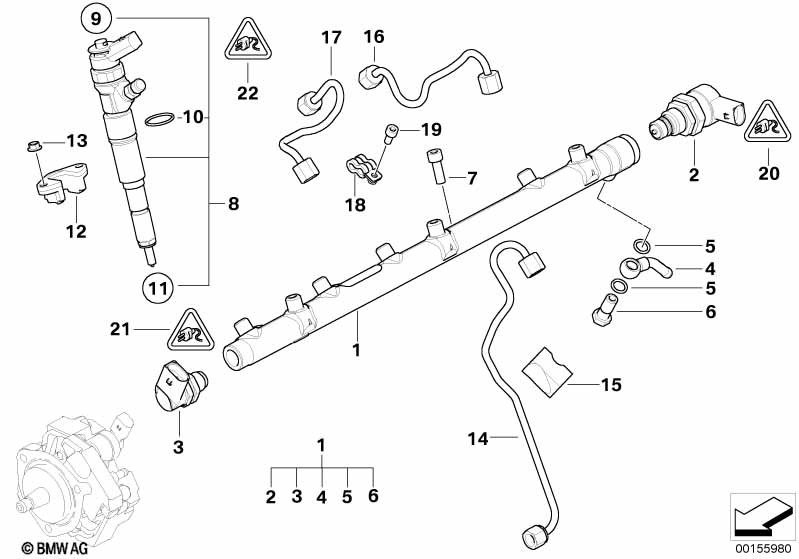

This High pressure accumulator/injector/line technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 325d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure accumulator | 1 | 13537805728 | Shop at ECS Tuning | ||||||
| 02 | Pressure regulating valve | 1 | 13537805733 | Shop at ECS Tuning | ||||||
| 03 | Pressure sensor | 1 | 13537787167 | $267.53 | Shop at ECS Tuning | |||||
| 04 | Connector | 1 | 13537805736 | $27.37 | Shop at ECS Tuning | |||||
| 04 | Part not available separately | 1 | 07/2023 | 00000000000 | Shop at ECS Tuning | |||||
| Order item 1 | ||||||||||
| 05 | Gasket ring | 2 | 13512248189 | $1.84 | Shop at ECS Tuning | |||||
| 06 | Hollow bolt | 1 | 13537807486 | $16.35 | Shop at ECS Tuning | |||||
| 07 | ISA screw | M8X25-10.9-ZNS3 | 3 | 07129904477 | $2.00 | Shop at ECS Tuning | ||||
| 08 | Injector | 6 | 13537794435 | Shop at ECS Tuning | ||||||
| 09 | Clamp | 6 | 13532247856 | $7.82 | Shop at ECS Tuning | |||||
| 10 | O-ring | 22X2 | 6 | 13537787236 | $3.75 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | 6 | 13532247156 | $3.63 | Shop at ECS Tuning | |||||
| 12 | Flange | 6 | 13537787215 | Shop at ECS Tuning | ||||||
| 13 | Flange nut | M6 | 12 | 13537801713 | $0.23 | Shop at ECS Tuning | ||||
| 14 | Pressure hose assy | 1 | 13537792947 | $28.62 | Shop at ECS Tuning | |||||
| 15 | Rubber Mounting | 1 | 13532248576 | $3.40 | Shop at ECS Tuning | |||||
| 16 | Pressure hose assy | 1/3/5 | 3 | 13537804238 | Shop at ECS Tuning | |||||
| 17 | Pressure hose assy | 2/4/6 | 3 | 13537804239 | Shop at ECS Tuning | |||||
| 18 | Clamp | 3 | 13537787200 | Shop at ECS Tuning | ||||||
| 19 | ISA screw | M5X10-8.8 | 3 | 07129904976 | Shop at ECS Tuning | |||||
| 20 | Socket housing 2 pins | 1 | 12527508153 | $2.53 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,2- 0,5MM²/AG | 1 | 12520143427 | $2.03 | Shop at ECS Tuning | ||||
| -- | Covering cap | 1 | 12517789973 | Shop at ECS Tuning | ||||||
| 21 | Plug housing | 3 POL. | 1 | 12527508154 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Single conductor seal | 1,0-2,5MM² | 3 | 12521748974 | $0.20 | Shop at ECS Tuning | ||||
| -- | Socket contact SLK 2,8 | 1,0-2,5 MM²/AG | 3 | 12527502933 | $0.50 | Shop at ECS Tuning | ||||
