Fuel pipes / Mounting parts for BMW 5 Series F10 525dX (2013)

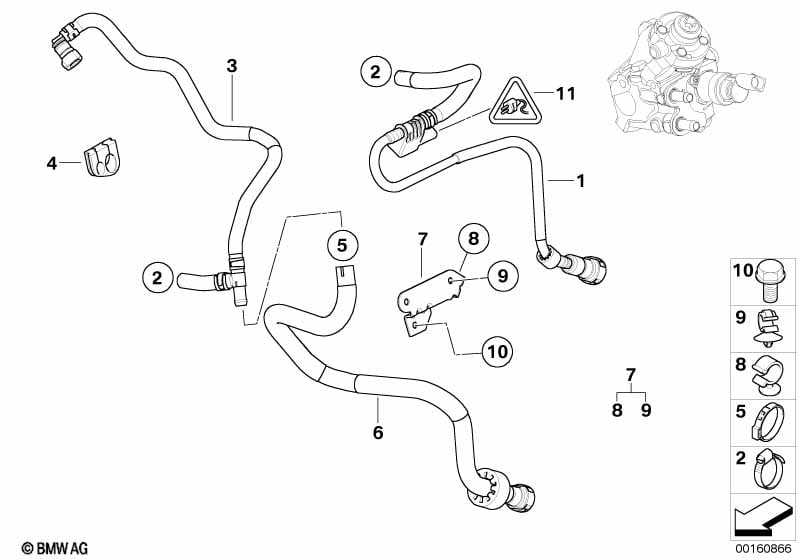

This Fuel pipes / Mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 525dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel feed line | 1 | 13538509229 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Spacer sleeve | 1 | 13537629902 | Shop at ECS Tuning | ||||||

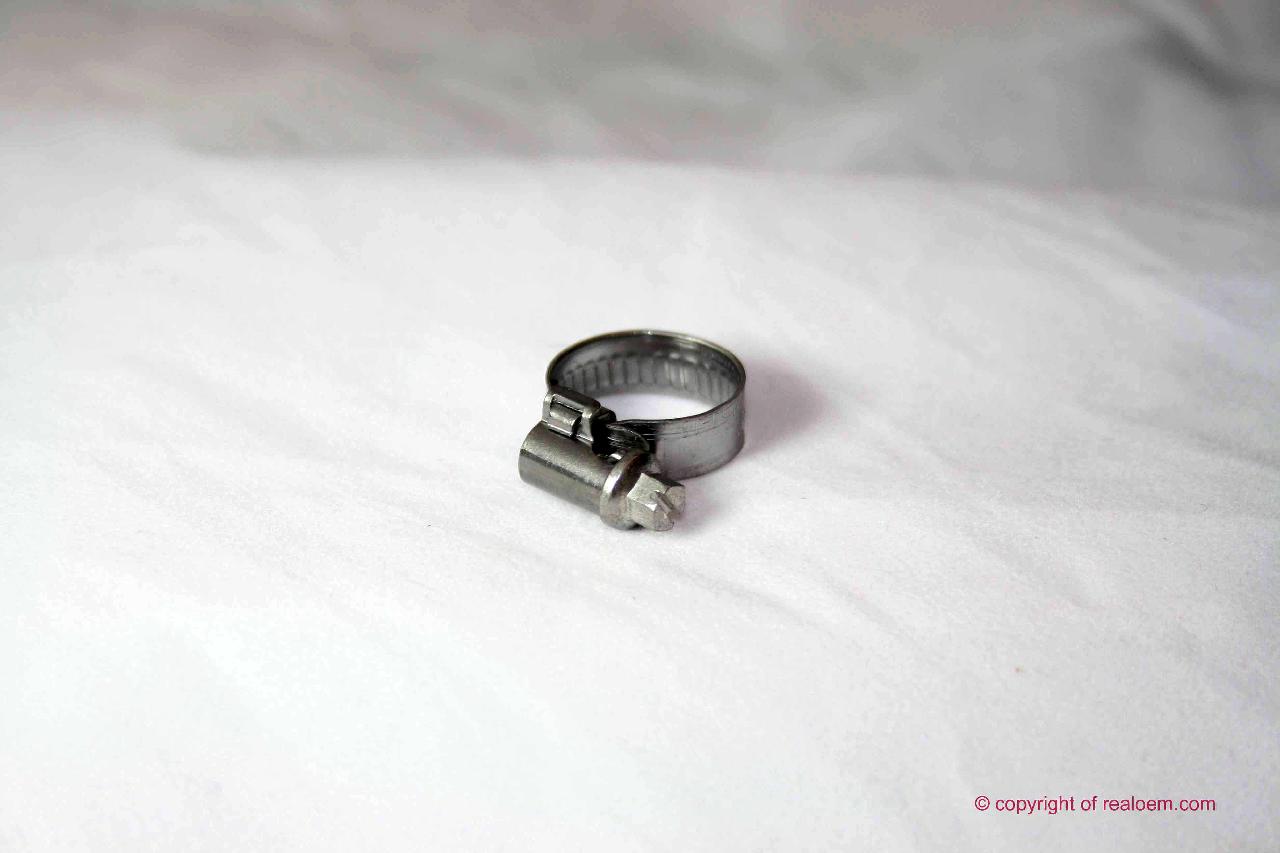

| 02 | Hose clamp | L15-18 | 2 | 11151727509 | $1.02 | Shop at ECS Tuning | ||||
| 03 | Fuel return line | 1 | 13537823410 | Shop at ECS Tuning | ||||||
| 04 | Grommet | 1 | 13537801976 | Shop at ECS Tuning | ||||||
| 05 | Hose clamp | L15-19 | 1 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 06 | Fuel return line | 1 | 13537810788 | Shop at ECS Tuning | ||||||
