High-pressure rail/injector/line for BMW 1 Series E81 120i (2010)

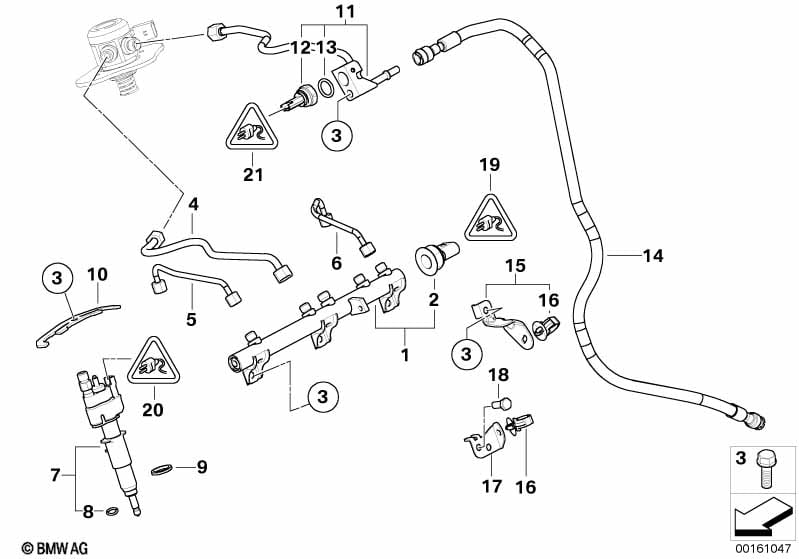

This High-pressure rail/injector/line technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | High-pressure rail | 1 | 13537562474 | Shop at ECS Tuning | ||||||
| 02 | Sensor, high-pressure | 1 | 13537537319 | $75.10 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M7X16-U1 | 7 | 07119905926 | Shop at ECS Tuning | |||||
| 04 | Pressure hose assy | 1 | 13537562477 | Shop at ECS Tuning | ||||||
| 05 | Pressure hose assy | 1-3 | 3 | 13537562478 | Shop at ECS Tuning | |||||
| 06 | Pressure hose assy | 4 | 1 | 13537562479 | Shop at ECS Tuning | |||||
| 07 | Injector | 4 | 13537589048 | $177.32 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Decoupling element | 4 | 13538651060 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Decoupling element | 4 | 13537564751 | $7.73 | Shop at ECS Tuning | |||||
| 08 | Gasket ring | 4 | 13537584315 | $3.86 | Shop at ECS Tuning | |||||
| 09 | Decoupling element | 4 | 13537564751 | $7.73 | Shop at ECS Tuning | |||||
| 09 | Decoupling element | 4 | 05/2020 | 13538651060 | Shop at ECS Tuning | |||||
| 10 | Bracket, injection valve | 2 | 13537537318 | $10.70 | Shop at ECS Tuning | |||||
| 11 | Supply line with sensor | 1 | 13537562475 | Shop at ECS Tuning | ||||||
| 12 | Fuel pressure sensor | 1 | 13539899007 | Shop at ECS Tuning | ||||||
| 13 | O-ring | 8,2X1,5 | 1 | 13537559991 | $3.11 | Shop at ECS Tuning | ||||
| 14 | Fuel hose | 1 | 13537562481 | Shop at ECS Tuning | ||||||
| 15 | Bracket, hose line | 1 | 13537573392 | Shop at ECS Tuning | ||||||
| 16 | Cable holder | 2 | 12521732532 | $0.70 | Shop at ECS Tuning | |||||
| 17 | Bracket, hose line | 1 | 13537562483 | Shop at ECS Tuning | ||||||
| 18 | Hex bolt with washer | M8X20-U1-8.8 | 1 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 20 | Socket housing | 1 | 12527507529 | $2.53 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MLK 1.2 strand sealing | 0,35-0,5MM² AG | 2 | 61138722290 | Shop at ECS Tuning | |||||
| -- | Single conductor seal | 0,22-1,0MM² | 2 | 12527503411 | $0.18 | Shop at ECS Tuning | ||||
| 21 | Socket housing, blue | 1 | 12527507526 | $2.53 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Single conductor seal | 0.5-1.0MM² GN | 1 | 61138366245 | $0.17 | Shop at ECS Tuning | ||||
| -- | Contact bushing MLK 1.2 strand sealing | 0,35-0,5MM² AG | 1 | 61138722290 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
