High-pressure pump for BMW 3 Series E93 LCI 320i (2013)

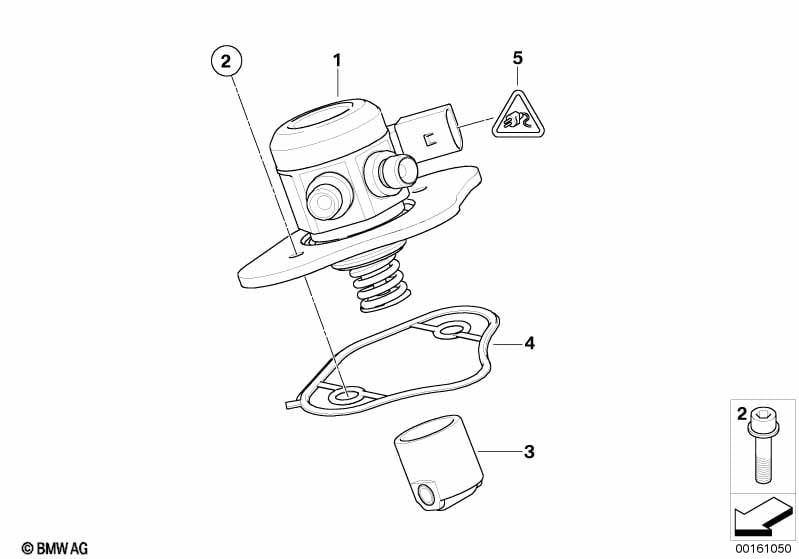

This High-pressure pump technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | High-pressure pump | 1 | 13517562473 | Shop at ECS Tuning | ||||||
| 02 | Isa screw with washer | M6X25-U1 | 2 | 13517632572 | Shop at ECS Tuning | |||||
| 03 | Cam follower | 1 | 11327542075 | $36.68 | Shop at ECS Tuning | |||||
| 04 | Profile-gasket | 1 | 11127555739 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E93 LCI 320i High-pressure pump?
- This technical diagram illustrates the High-pressure pump within the Fuel preparation system group for the 3 Series E93 LCI 320i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the High-pressure pump (Part #13517562473).
- Which models use the hardware listed in this High-pressure pump?
- The hardware and components featured in the High-pressure pump are specific to the 3 Series E93 LCI 320i produced during 2013. These technical specifications ensure that parts like the High-pressure pump (13517562473) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the High-pressure pump assembly?
- Each item in the High-pressure pump corresponds to the numbered list below the illustration. For the 3 Series E93 LCI 320i, you can identify the High-pressure pump by locating its position on the schematic, which then links to the official BMW part number 13517562473 for the Fuel preparation system section.
