Fuel pipes / Mounting parts for BMW 5 Series E60 LCI 520d (2007)

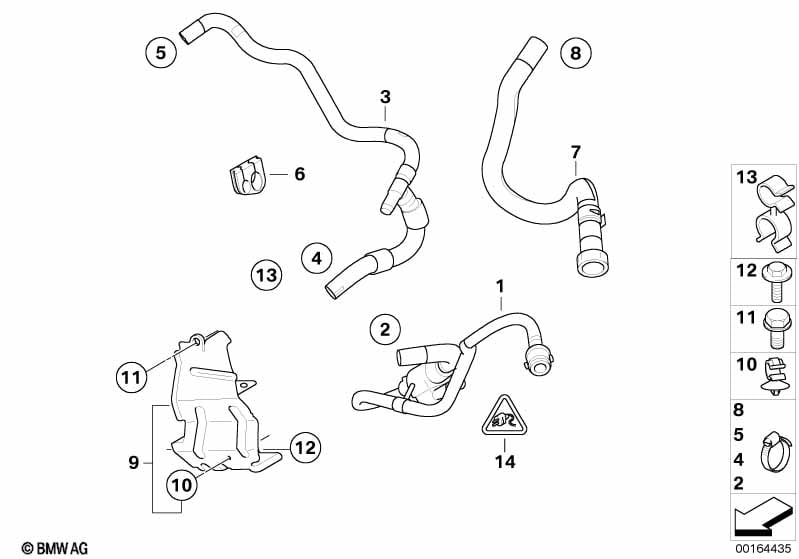

This Fuel pipes / Mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel feed line | 1 | 13537807487 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hose clamp | L15-18 | 1 | 11151727509 | $1.02 | Shop at ECS Tuning | ||||
| 03 | Fuel return line | 1 | 13537807489 | Shop at ECS Tuning | ||||||
| 04 | Hose clamp | L15-18 | 1 | 11151727509 | $1.02 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | L12-15 | 1 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 06 | Grommet | 1 | 13537801976 | Shop at ECS Tuning | ||||||
| 07 | Fuel return line | 1 | 13537807488 | Shop at ECS Tuning | ||||||
| 08 | Hose clamp | L15-19 | 1 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 09 | Protection plate | 1 | 13517807490 | ENDED | Shop at ECS Tuning | |||||
| 10 | Tubing support | D10-11 | 1 | 13532245954 | Shop at ECS Tuning | |||||
| 11 | Hex bolt with washer | M6X16-U1-8.8 | 3 | 04/2008 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
| 11 | Hex bolt with washer | M6X16-U1-8.8 | 3 | 04/2009 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
| 11 | Collar screw | M6X18-ZNS3 | 3 | 11537804636 | $0.60 | Shop at ECS Tuning | ||||
| 12 | Torx bolt | M10X25-U1 8.8 | 1 | 07129905133 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
