Diesel part.filter sens./mounting parts for BMW 3 Series E93 LCI 330d (2013)

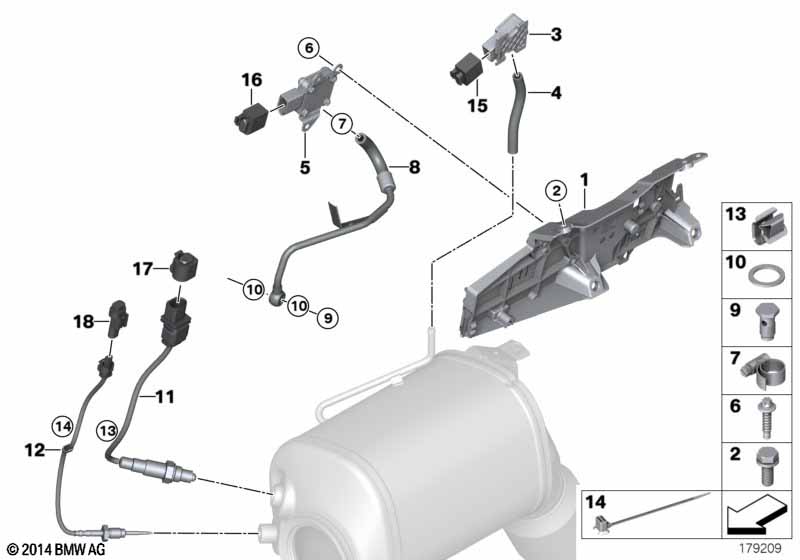

This Diesel part.filter sens./mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket f.sensor | 1 | 13627806494 | Shop at ECS Tuning | ||||||
| 02 | Screw for thermoplastic plastics | 60X22 | 2 | 06/2011 | 13627805193 | $0.53 | Shop at ECS Tuning | |||
| 03 | Exhaust pressure sensor | 1 | 13627805152 | Shop at ECS Tuning | ||||||
| 04 | Hose | 7.3X2 | X | 11/2010 | 13628591459 | Shop at ECS Tuning | ||||
| 05 | Exhaust pressure sensor | 1 | 13627808013 | $75.27 | Shop at ECS Tuning | |||||
| 06 | Torx-bolt for plastic material | TS5X20 | 3 | 06/2013 | 07119907480 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | L12-15 | 1 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 08 | Pipe, backpressure | 1 | 13627812807 | Shop at ECS Tuning | ||||||
| 09 | Hollow bolt | M12X1,5 | 1 | 13627811933 | $6.15 | Shop at ECS Tuning | ||||
| 10 | Gasket ring | A12X15,5 | 2 | 13627811934 | $0.52 | Shop at ECS Tuning | ||||
| For vehicles with BMW Diesel with Blue Performance and EU3 exhaust emissions standard |
S163A=No S169A=No |
|||||||||
| 11 | Oxygen sensor | L=380MM | 1 | 13627791600 | Shop at ECS Tuning | |||||
| For vehicles with EU3 exhaust emissions standard |
S169A=No |
|||||||||
| 12 | Temperature sensor, exhaust | 1 | 13627805606 | $96.25 | Shop at ECS Tuning | |||||
| 13 | Clip | 1 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 14 | Cable tie | 1 | 12511742867 | $2.73 | Shop at ECS Tuning | |||||
