Hot-film air mass meter/clean air pipe for BMW 3 Series E92 330d (2009)

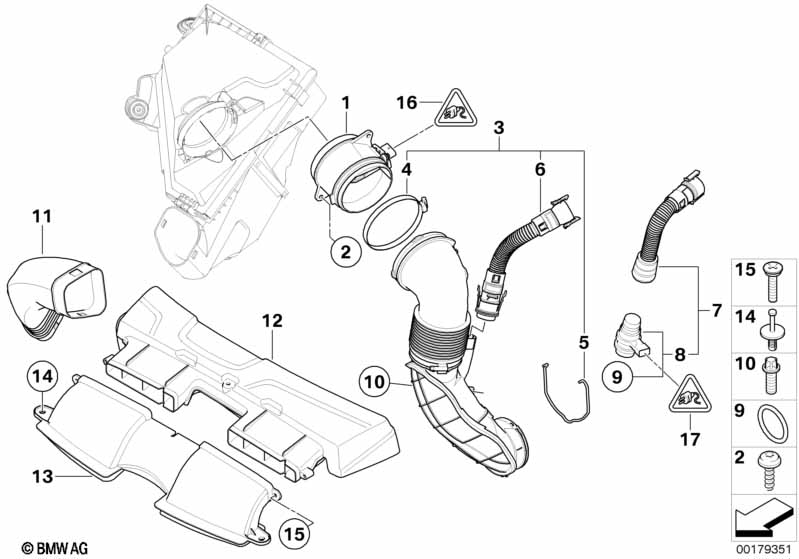

This Hot-film air mass meter/clean air pipe technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hot-film air mass meter | 1 | 13627807020 | Shop at ECS Tuning | ||||||
| 02 | Screw for thermoplastic plastics | 60X22 | 2 | 13627805193 | $0.53 | Shop at ECS Tuning | ||||
| 03 | Filtered air pipe | 1 | 13717800067 | Shop at ECS Tuning | ||||||
| 04 | Hose clamp | L95-102 | 1 | 07129952137 | $1.52 | Shop at ECS Tuning | ||||
| 05 | Spring clip | 1 | 17517802664 | $2.88 | Shop at ECS Tuning | |||||
| 06 | Pipe | 1 | 13717803842 | Shop at ECS Tuning | ||||||
| 10 | Torx bolt | M6X20-ZNNIV SI | 1 | 07129905568 | $0.44 | Shop at ECS Tuning | ||||
| 10 | Collar screw | M6X18-ZNS3 | 1 | 11537804636 | $0.60 | Shop at ECS Tuning | ||||
| 10 | Torx bolt | BM6X20-8.8-ZNS3 | 1 | 07119907243 | Shop at ECS Tuning | |||||
| 11 | Air channel | 1 | 13717797470 | $28.88 | Shop at ECS Tuning | |||||
| 12 | Suction hood | 1 | 13717800300 | Shop at ECS Tuning | ||||||
| 13 | Suction hood, front | 1 | 13717541738 | $56.91 | Shop at ECS Tuning | |||||
| 14 | Expanding rivet | 2 | 51471919209 | $0.45 | Shop at ECS Tuning | |||||
| 15 | Torx-bolt for plastic material | ISA L=25MM | 3 | 07147549513 | $0.29 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E92 330d Hot-film air mass meter/clean air pipe?
- This technical diagram illustrates the Hot-film air mass meter/clean air pipe within the Fuel preparation system group for the 3 Series E92 330d produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Hot-film air mass meter (Part #13627807020).
- Which models use the hardware listed in this Hot-film air mass meter/clean air pipe?
- The hardware and components featured in the Hot-film air mass meter/clean air pipe are specific to the 3 Series E92 330d produced during 2009. These technical specifications ensure that parts like the Hot-film air mass meter (13627807020) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hot-film air mass meter/clean air pipe assembly?
- Each item in the Hot-film air mass meter/clean air pipe corresponds to the numbered list below the illustration. For the 3 Series E92 330d, you can identify the Hot-film air mass meter by locating its position on the schematic, which then links to the official BMW part number 13627807020 for the Fuel preparation system section.
