Intake muffler/Filter cartridge/HFM for BMW 7 Series F01 740d (2012)

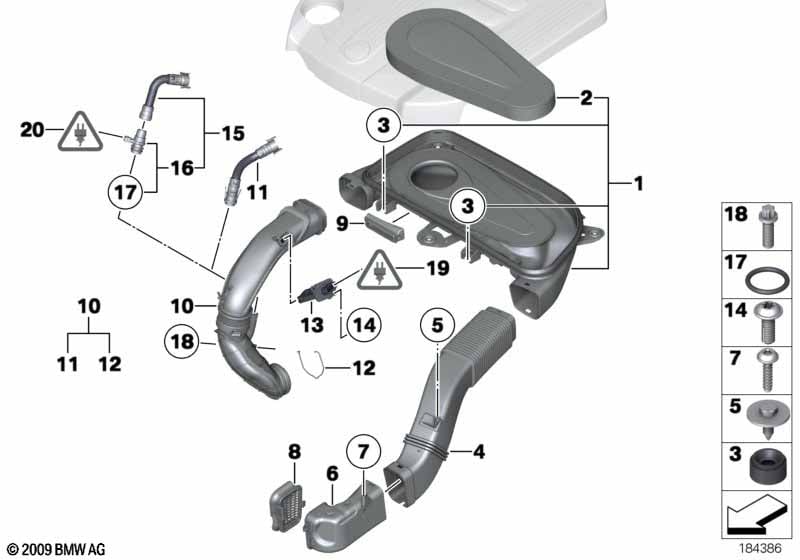

This Intake muffler/Filter cartridge/HFM technical drawing provides a detailed breakdown of the assembly for the 7 Series F01 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 09/2009 | 13717812064 | Shop at ECS Tuning | |||||
| 02 | Air filter element | 1 | 13717800151 | Shop at ECS Tuning | ||||||
| 03 | Rubber Mounting | 2 | 11147799108 | Shop at ECS Tuning | ||||||
| 04 | Intake duct | 1 | 09/2009 | 13717811597 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | TS5X20 SW8 D=16 | 1 | 07147148437 | $0.44 | Shop at ECS Tuning | ||||
| 06 | Air channel | 5-8 | 1 | 09/2015 | 13717577471 | $17.43 | Shop at ECS Tuning | |||
| 06 | Air channel | 1 | 13718591020 | Shop at ECS Tuning | ||||||
| 07 | Screw | 5X20 | 1 | 11617535849 | $0.75 | Shop at ECS Tuning | ||||
| 08 | Intake manifold | 1 | 13717800154 | Shop at ECS Tuning | ||||||
| For vehicles with Cold-climate version |
S842A=Yes |
|||||||||
| 09 | Bypass valve | 1 | 13717811406 | Shop at ECS Tuning | ||||||
| 10 | Filtered air pipe | 1 | 13717805482 | Shop at ECS Tuning | ||||||
| 11 | Pipe | 1 | 13717810772 | Shop at ECS Tuning | ||||||
| 12 | Spring clip | 1 | 17517802664 | $2.88 | Shop at ECS Tuning | |||||
| 13 | Hot-film air mass meter | 1 | 13627804150 | Shop at ECS Tuning | ||||||
| 14 | Fillister head screw with collar | M4X14 | 2 | 46637659479 | $1.20 | Shop at ECS Tuning | ||||
| For vehicles with Cold-climate version |
S842A=Yes |
|||||||||
| 15 | Pipe with heating element | 1 | 13718516240 | Shop at ECS Tuning | ||||||
| 16 | Heater element | 1 | 13717787941 | $62.02 | +core | Shop at ECS Tuning | ||||
| 17 | O-ring | 1 | 13717787197 | $3.75 | Shop at ECS Tuning | |||||
| 18 | Torx bolt | M6X20-ZNNIV SI | 1 | 07129905568 | $0.44 | Shop at ECS Tuning | ||||
| 18 | Collar screw | M6X18-ZNS3 | 1 | 11537804636 | $0.60 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F01 740d Intake muffler/Filter cartridge/HFM?
- This technical diagram illustrates the Intake muffler/Filter cartridge/HFM within the Fuel preparation system group for the 7 Series F01 740d produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Intake muffler (Part #13717812064).
- Which models use the hardware listed in this Intake muffler/Filter cartridge/HFM?
- The hardware and components featured in the Intake muffler/Filter cartridge/HFM are specific to the 7 Series F01 740d produced during 2012. These technical specifications ensure that parts like the Intake muffler (13717812064) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake muffler/Filter cartridge/HFM assembly?
- Each item in the Intake muffler/Filter cartridge/HFM corresponds to the numbered list below the illustration. For the 7 Series F01 740d, you can identify the Intake muffler by locating its position on the schematic, which then links to the official BMW part number 13717812064 for the Fuel preparation system section.
