Fuel tank breath.valve/disturb.air valve for BMW 3 Series E30 325e (1987)

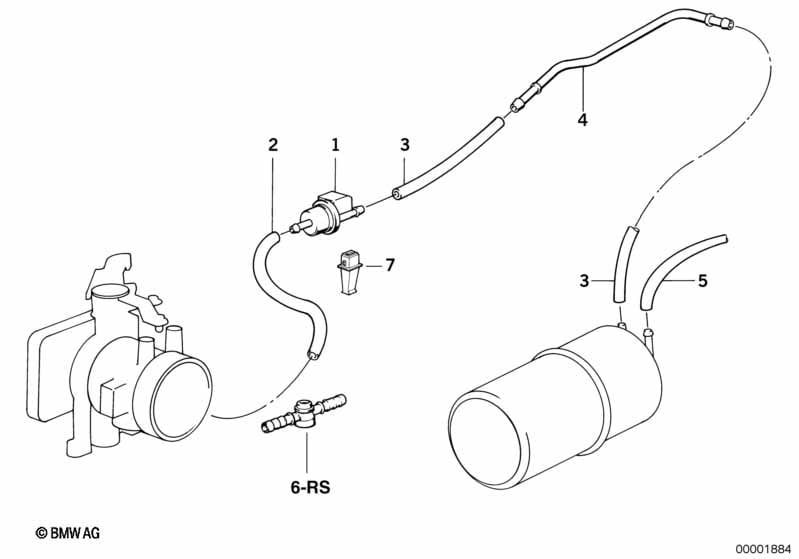

This Fuel tank breath.valve/disturb.air valve technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Catalytic converter |
=Yes |
|||||||||
| 01 | Fuel tank breather valve | AB-ELEKTRONIK | 1 | 13901726705 | $82.88 | Shop at ECS Tuning | ||||
| 02 | Fuel hose | 32MM-210MM | 1 | 13311288284 | $17.10 | Shop at ECS Tuning | ||||
| 03 | Fuel hose | 6X11MM | 1 | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 05 | Fuel hose | 8X13MM | 1 | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Wire holder, two-place | 1 | 61138380213 | $0.35 | Shop at ECS Tuning | |||||
| -- | Hose clamp | D=6/8 MM | 1 | 12511714147 | $0.32 | Shop at ECS Tuning | ||||
| For vehicles with National version Germany and Catalytic converter |
=Yes =Yes |
|||||||||
| 06 | Disturbed air valve set | D=2,3MM | 1 | 12/1986 | 11641740195 | ENDED, SI 001794822, SI 001894823, SI 110993710 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
