Valves/Pipes of fuel injection system for BMW 3 Series E30 318i (1991)

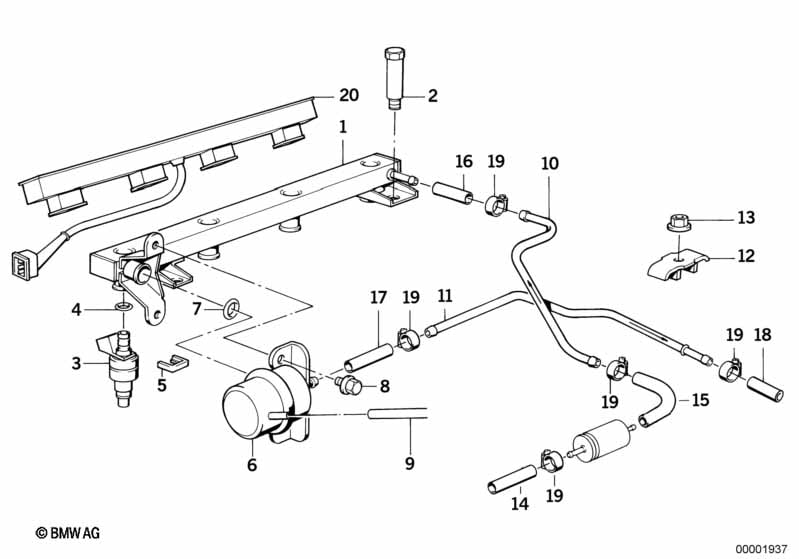

This Valves/Pipes of fuel injection system technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Injection tube | 1 | 13531714710 | $46.04 | Shop at ECS Tuning | |||||
| 02 | Spacer | M8X56 | 2 | 13531721246 | $5.85 | Shop at ECS Tuning | ||||
| 03 | Injection valve | FD*852 | 4 | 13641706162 | $113.07 | ENDED | Shop at ECS Tuning | |||
| 03 | Injection valve | LUCAS | 4 | 13641731357 | $122.42 | Shop at ECS Tuning | ||||
| 04 | O-ring | 7,52X3,53 | 8 | 13641730767 | $3.75 | Shop at ECS Tuning | ||||
| 05 | Clamp | 4 | 13531274729 | $0.67 | Shop at ECS Tuning | |||||
| 06 | Pressure regulator | 1 | 13531715095 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X12-Z3-1 | 2 | 07119915033 | $1.07 | Shop at ECS Tuning | ||||
| 09 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 10 | Fuel pipe | 1 | 13531717864 | ENDED | Shop at ECS Tuning | |||||
| 11 | Fuel return line | 1 | 13531717863 | Shop at ECS Tuning | ||||||
| 12 | Fuel pipe bracket | 1 | 13531717650 | $5.35 | Shop at ECS Tuning | |||||
| 13 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO FUEL FEED LINE |
||||||||||
| 14 | Kit for fuel hose and clamp | 200MM/FPM | 1 | 13311703491 | $15.23 | SI 130293692 | Shop at ECS Tuning | |||
| 15 | Kit for fuel hose and clamp | 280MM/FPM | 1 | 13531247254 | SI 130293692 | Shop at ECS Tuning | ||||
| 16 | Kit for fuel hose and clamp | .70MM/FPM | 1 | 13311403416 | $12.72 | Shop at ECS Tuning | ||||
| 16 | Fuel hose | 8X13MMX1000 | 1 | 13537563456 | $44.77 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO FUEL RETURN LINE |
||||||||||
| 17 | Kit for fuel hose and clamp | .70MM/FPM | 1 | 13311403416 | $12.72 | SI 130293692 | Shop at ECS Tuning | |||
| 17 | Fuel hose | 8X13MMX1000 | 1 | 13537563456 | $44.77 | Shop at ECS Tuning | ||||
| 18 | Kit for fuel hose and clamp | 450MM/FPM | 1 | 13311247271 | $30.27 | SI 130293692 | Shop at ECS Tuning | |||
| 19 | Hose clamp | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 20 | Plug-board | 1 | 12511714263 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
