Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 3 Series E30 325ix (1987)

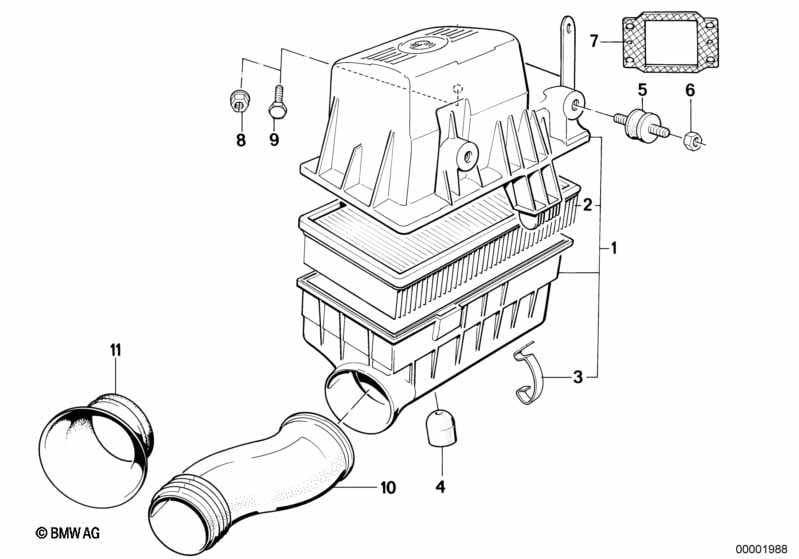

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 09/1985 | 13711726966 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Stud bolt | M6X28-ZN | 4 | 09/1985 | 07129908111 | $0.63 | Shop at ECS Tuning | |||
| 02 | Air filter element | 1 | 09/1985 | 13721720861 | Shop at ECS Tuning | |||||
| 03 | Spring clip | L=34MM | 4 | 09/1985 | 13711707044 | $1.16 | Shop at ECS Tuning | |||
| 04 | Distance rubber | 1 | 09/1985 | 13711312328 | $6.75 | Shop at ECS Tuning | ||||
| 05 | Rubber Mounting | 2 | 09/1985 | 13711259818 | $6.98 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M6 | 2 | 09/1985 | 07147134319 | $1.05 | Shop at ECS Tuning | |||
| 07 | Sealing frame | 1 | 09/1985 | 13711705064 | $0.70 | Shop at ECS Tuning | ||||
| 08 | Self-locking hex nut | M6 | 4 | 09/1985 | 07147153450 | $0.47 | Shop at ECS Tuning | |||
| 09 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 09/1985 | 07119904357 | $0.36 | Shop at ECS Tuning | |||
| 10 | Intake tube | 1 | 09/1985 | 13711713128 | $12.41 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Diagnosis plug bracket | 1 | 09/1985 | 11531726298 | $1.19 | Shop at ECS Tuning | ||||
| 11 | Suction tube | 1 | 09/1985 | 13711284612 | $11.82 | ENDED | Shop at ECS Tuning | |||
