Throttle housing assy/heating element for BMW 3 Series E30 318is

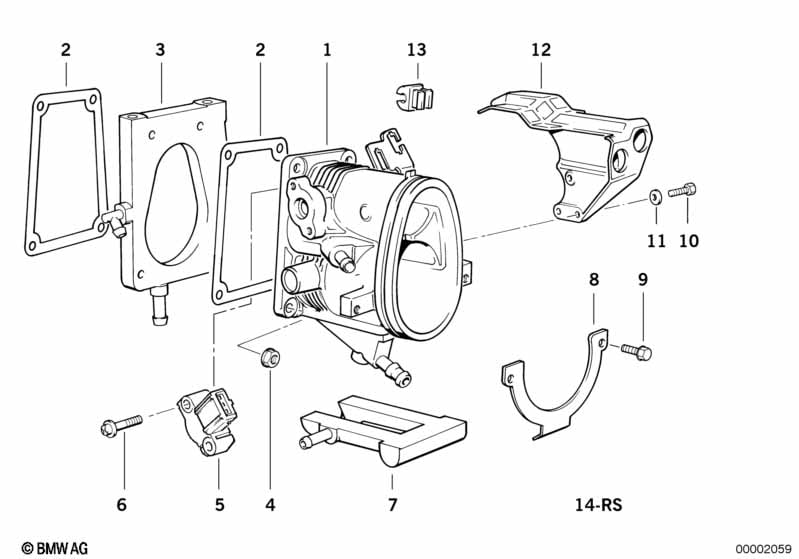

This Throttle housing assy/heating element technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Throttle Housing Assy | 35/54 | 1 | 10/1991 | 13541739241 | $355.76 | Shop at ECS Tuning | |||
| 02 | Gasket Asbestos Free | 2 | 07/1994 | 13541743261 | $2.02 | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 1 | 07/1994 | 13541743261 | $2.02 | Shop at ECS Tuning | ||||
| 03 | Heater radiator | 1 | 10/1991 | 13541739222 | $99.73 | Shop at ECS Tuning | ||||
| 04 | Hex nut with plate | AM6-8-ZNNIV SI | 4 | 10/1991 | 07129904553 | $0.64 | Shop at ECS Tuning | |||
| 05 | Throttle valve switch | 4 KOHM | 1 | 10/1991 | 13631721456 | +core | Shop at ECS Tuning | |||
| 06 | Fillister head screw | M4X2,5 | 2 | 10/1991 | 13541726918 | $5.50 | Shop at ECS Tuning | |||
| 07 | Heater element | 1 | 10/1991 | 13541739221 | $72.27 | Shop at ECS Tuning | ||||
| 08 | Bracket | 1 | 10/1991 | 13541739230 | $9.53 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M6X12 | 4 | 10/1991 | 07119913013 | $1.22 | Shop at ECS Tuning | |||
| 14 | Retrofit kit | SERVICE | 1 | 13541739263 | $444.76 | ENDED | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318is Throttle housing assy/heating element?
- This technical diagram illustrates the Throttle housing assy/heating element within the Fuel preparation system group for the 3 Series E30 318is. It provides a detailed exploded view of the components, identifying key parts such as the Throttle Housing Assy (Part #13541739241).
- Which models use the hardware listed in this Throttle housing assy/heating element?
- The hardware and components featured in the Throttle housing assy/heating element are specific to the 3 Series E30 318is. These technical specifications ensure that parts like the Throttle Housing Assy (13541739241) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Throttle housing assy/heating element assembly?
- Each item in the Throttle housing assy/heating element corresponds to the numbered list below the illustration. For the 3 Series E30 318is, you can identify the Throttle Housing Assy by locating its position on the schematic, which then links to the official BMW part number 13541739241 for the Fuel preparation system section.
