Valves/Pipes of fuel injection system for BMW 7 Series E32 735i (1992)

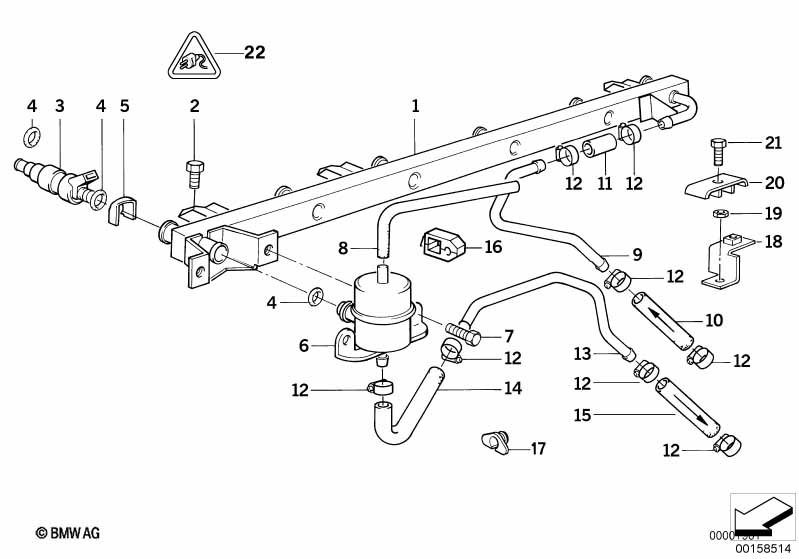

This Valves/Pipes of fuel injection system technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Injection tube | 1 | 13531719916 | $373.91 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M6X14-ZNNIV SI | 2 | 07119905964 | Shop at ECS Tuning | |||||
| 03 | Injection valve | BOSCH | 6 | 13641706176 | $113.07 | Shop at ECS Tuning | ||||
| 03 | Injection valve | VALEO | 6 | 13641730292 | $122.42 | ENDED | Shop at ECS Tuning | |||
| 04 | O-ring | 7,52X3,53 | X | 13641730767 | $3.75 | Shop at ECS Tuning | ||||
| 05 | Clamp | 6 | 13531274729 | $0.67 | Shop at ECS Tuning | |||||
| 06 | Pressure regulator | 3,0BAR | 1 | 13531711541 | $56.93 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X12-Z3-1 | 2 | 07119915033 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 09 | Fuel supply line | 1 | 13311718902 | $34.20 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO FUEL FEED LINE |
||||||||||
| 10 | Kit for fuel hose and clamp | 450MM/FPM | 1 | 13311247271 | $30.27 | Shop at ECS Tuning | ||||
| 11 | Kit for fuel hose and clamp | 40MM/FPM | 1 | 10/1992 | 13531748684 | $7.57 | ENDED | Shop at ECS Tuning | ||
| 11 | Kit for fuel hose and clamp | .70MM/FPM | 1 | 13311403416 | $12.72 | SI 130293692 | Shop at ECS Tuning | |||
| 11 | Fuel hose | 8X13MMX1000 | 1 | 13537563456 | $44.77 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 13 | Fuel return line | 1 | 13311718903 | $23.25 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO FUEL RETURN LINE |
||||||||||
| 14 | Kit for fuel hose and clamp | FPM | 1 | 13311748689 | $30.27 | Shop at ECS Tuning | ||||
| 15 | Kit for fuel hose and clamp | 450MM/FPM | 1 | 13311247271 | $30.27 | SI 130293692 | Shop at ECS Tuning | |||
| 16 | Fuel pipe bracket | 3 | 13311718966 | $1.03 | Shop at ECS Tuning | |||||
| 17 | Protection ring | 1 | 13531276513 | $1.03 | ENDED | Shop at ECS Tuning | ||||
| 18 | Fuel pipe bracket | 1 | 13311722580 | $4.58 | ENDED | Shop at ECS Tuning | ||||
| 19 | Hex nut | M8-8-ZNS3 | 1 | 02/1994 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 19 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 20 | Fuel pipe bracket | 1 | 13531717650 | $5.35 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Washer | 1 | 18214690192 | $0.20 | Shop at ECS Tuning | |||||
| 21 | Hex bolt | M6X22-8.8-ZNS3 | 1 | 07119904505 | $0.38 | Shop at ECS Tuning | ||||
| 22 | Socket housing | 2 POL. | 1 | 12521427221 | $1.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 1 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
