Valves/Pipes of fuel injection system for BMW 7 Series E32 730i (1992)

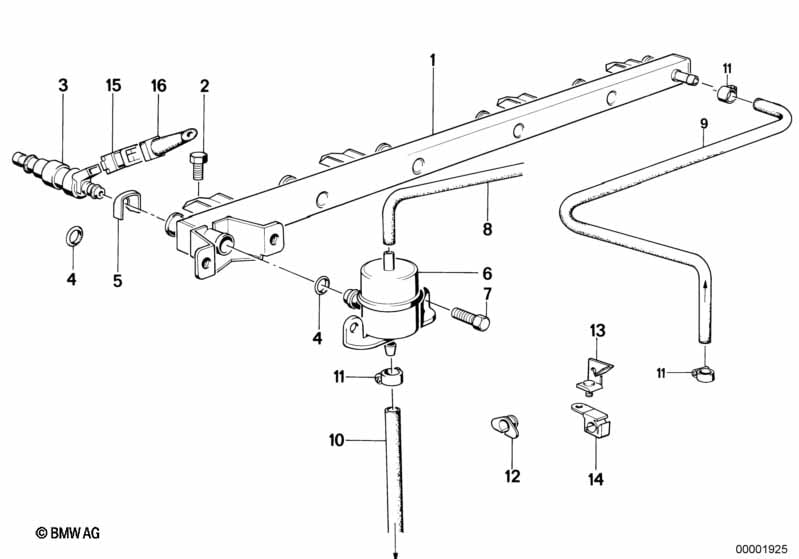

This Valves/Pipes of fuel injection system technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Injection tube | 1 | 13531719916 | $373.91 | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M6X14-ZNNIV SI | 2 | 07119905964 | Shop at ECS Tuning | |||||
| 03 | Injection valve | BOSCH | 6 | 13641706176 | $113.07 | Shop at ECS Tuning | ||||
| 03 | Injection valve | VALEO | 6 | 13641730292 | $122.42 | ENDED | Shop at ECS Tuning | |||
| 04 | O-ring | 7,52X3,53 | X | 13641730767 | $3.75 | Shop at ECS Tuning | ||||
| 05 | Clamp | 6 | 13531274729 | $0.67 | Shop at ECS Tuning | |||||
| 06 | Pressure regulator | 3,0BAR | 1 | 13531711541 | $56.93 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X12-Z3-1 | 2 | 07119915033 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 09 | Hose | 1 | 13311718975 | $21.97 | ENDED | Shop at ECS Tuning | ||||
| 10 | Fuel hose | 1 | 13311718974 | $79.57 | Shop at ECS Tuning | |||||
| 10 | Hose | AKF | 1 | 13531726960 | $6.38 | Shop at ECS Tuning | ||||
| 11 | Hose clamp | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 12 | Protection ring | 1 | 13531276513 | $1.03 | ENDED | Shop at ECS Tuning | ||||
| 13 | Fuel pipe bracket | 1 | 13311714473 | $17.08 | ENDED | Shop at ECS Tuning | ||||
| 14 | Clamp | D=13/6,4 | 3 | 12427840405 | $1.52 | Shop at ECS Tuning | ||||
| 14 | Bracket fuel pipe | 3 | 13311718976 | $4.22 | ENDED | Shop at ECS Tuning | ||||
| 15 | Plug housing | 2 POL. | 6 | 12521706091 | $4.02 | Shop at ECS Tuning | ||||
| 16 | Protection cap | L=12,5MM | 6 | 61131358330 | $5.33 | Shop at ECS Tuning |
