Throttle Housing Assy Eml for BMW 8 Series E31 850Ci (1994)

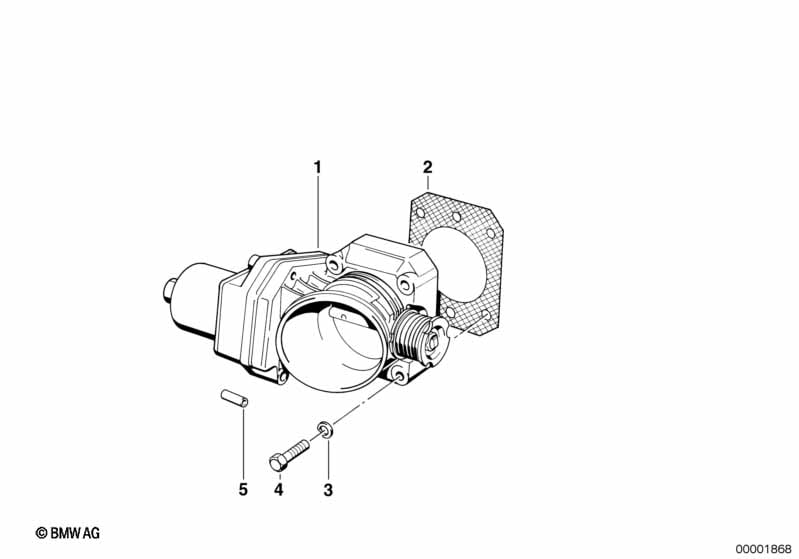

This Throttle Housing Assy Eml technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Throttle Housing Assy Eml | 2 | 13541736856 | $1648.07 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 2 | 11611708475 | $1.92 | Shop at ECS Tuning | |||||
| 03 | Spring washer Black | B6-ZN | 8 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Washer | 5.3-140 HV-ZNS | 8 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B6-ZNS3 | 8 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt | M6X45 8.8 ZNS3 | 8 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| 05 | Cap | D=7,0MM | 4 | 11611727176 | $3.39 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Throttle Housing Assy Eml?
- This technical diagram illustrates the Throttle Housing Assy Eml within the Fuel preparation system group for the 8 Series E31 850Ci produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Throttle Housing Assy Eml (Part #13541736856).
- Which models use the hardware listed in this Throttle Housing Assy Eml?
- The hardware and components featured in the Throttle Housing Assy Eml are specific to the 8 Series E31 850Ci produced during 1994. These technical specifications ensure that parts like the Throttle Housing Assy Eml (13541736856) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Throttle Housing Assy Eml assembly?
- Each item in the Throttle Housing Assy Eml corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Throttle Housing Assy Eml by locating its position on the schematic, which then links to the official BMW part number 13541736856 for the Fuel preparation system section.
