Throttle Housing Assy for BMW 8 Series E31 840Ci

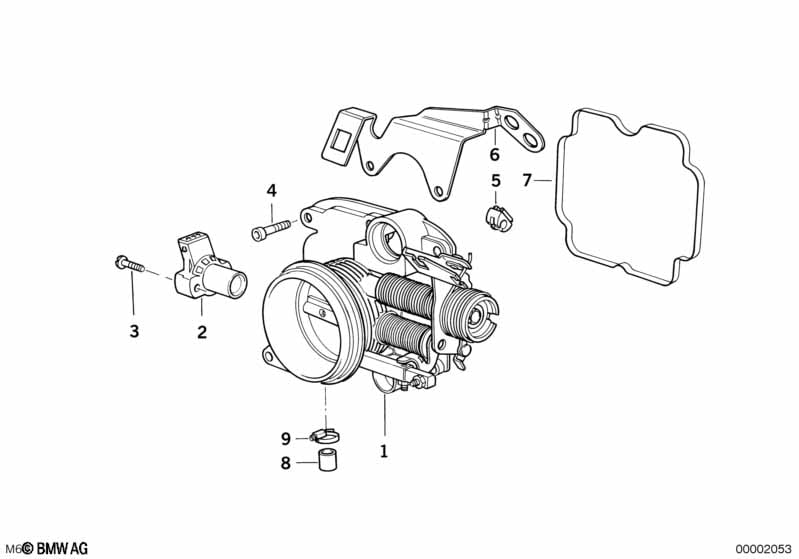

This Throttle Housing Assy technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Throttle Housing Assy | 1 | 13541741671 | $362.72 | ENDED | Shop at ECS Tuning | ||||
| 02 | Throttle valve switch | 4 KOHM | 1 | 13631721456 | +core | Shop at ECS Tuning | ||||
| 03 | Fillister head screw | M4X2,5 | 2 | 13541726918 | $5.50 | Shop at ECS Tuning | ||||
| 04 | Screw | M6X25 | 6 | 11141460752 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Bearing accelator bowden cable | SCHWARZ | 1 | 13541747519 | $0.58 | Shop at ECS Tuning | ||||
| 06 | Bracket for accelerator bowden cable | 1 | 13541747097 | $15.58 | Shop at ECS Tuning | |||||
| 07 | Profile-gasket | 1 | 11611729727 | $7.54 | Shop at ECS Tuning | |||||
| 08 | Cap | D=10,5 | 1 | 11611747085 | $5.09 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | L15-19 | 1 | 07129952107 | $0.93 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
