Mass air flow sensor for BMW 5 Series E34 530i (1996)

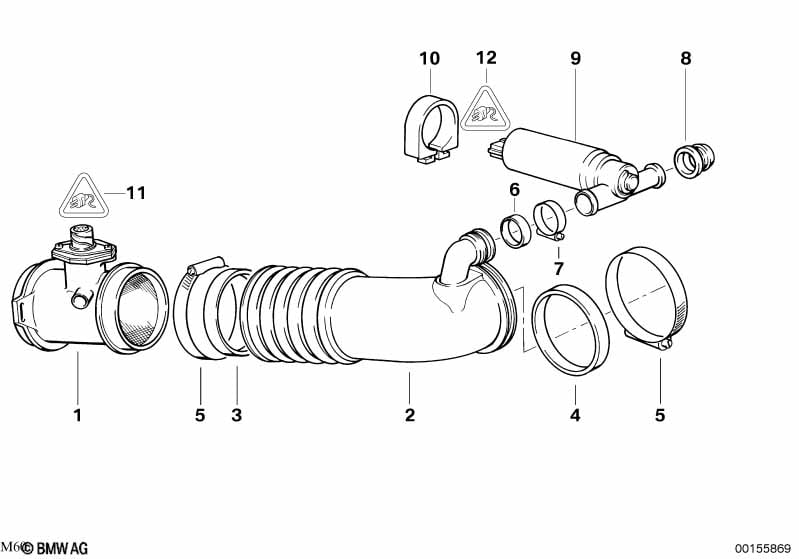

This Mass air flow sensor technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hot-film air mass meter | 4-POL | 1 | 13621747155 | $402.32 | Shop at ECS Tuning | ||||
| 02 | Rubber boot | 1 | 13711747994 | $97.10 | Shop at ECS Tuning | |||||
| 03 | Rubber Ring | 1 | 13711736198 | $8.98 | Shop at ECS Tuning | |||||
| 04 | Rubber Ring | 1 | 13711747985 | $7.89 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | L95-102 | 2 | 07129952137 | $1.52 | Shop at ECS Tuning | ||||
| 06 | Rubber Ring | 1 | 13711736197 | $7.89 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L32-38 | 1 | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
| 08 | Rubber grommet | 1 | 13411733217 | $10.88 | Shop at ECS Tuning | |||||
| 09 | T-shape idle regulating valve | 1 | 13411733090 | $335.12 | Shop at ECS Tuning | |||||
| 10 | Rubber Mounting | D=46MM | 1 | 13411736144 | $4.38 | Shop at ECS Tuning |
