Valves/Pipes of fuel injection system for BMW 8 Series E31 840Ci

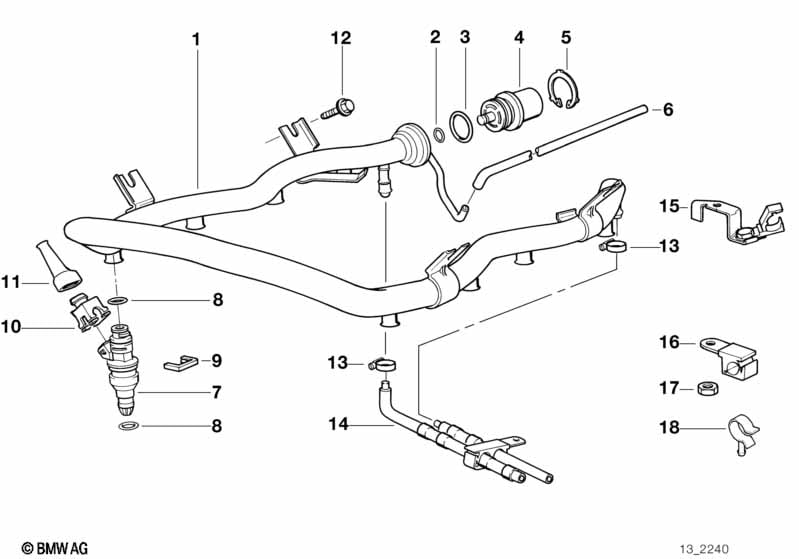

This Valves/Pipes of fuel injection system technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Injection pipe | 1 | 13531742188 | $208.20 | ENDED | Shop at ECS Tuning | ||||
| 02 | O-ring | 5X1,5 | 1 | 13531720252 | $3.75 | Shop at ECS Tuning | ||||
| 03 | O-ring | 20X2,5 | 1 | 13531720251 | $4.38 | Shop at ECS Tuning | ||||
| 04 | Pressure regulator | 1 | 13531436110 | $75.10 | Shop at ECS Tuning | |||||
| 04 | Pressure regulator | 3,5BAR/PIERBURG | 1 | 13531729319 | $75.10 | Shop at ECS Tuning | ||||
| 05 | Lock Ring | 1 | 13531736234 | $2.12 | Shop at ECS Tuning | |||||
| 06 | Vacuum hose | 1 | 13537560069 | $7.78 | Shop at ECS Tuning | |||||
| 07 | Injection valve | BOSCH | 8 | 13641736908 | $122.42 | Shop at ECS Tuning | ||||
| 08 | O-ring | 7,52X3,53 | X | 13641730767 | $3.75 | Shop at ECS Tuning | ||||
| 09 | Clamp | 8 | 13531274729 | $0.67 | Shop at ECS Tuning | |||||
| 10 | Plug housing | 2 POL. | 8 | 12521706091 | $4.02 | Shop at ECS Tuning | ||||
| 11 | Protection cap | L=12,5MM | 8 | 61131358330 | $5.33 | Shop at ECS Tuning | ||||
| 12 | Hex bolt with washer | M6X16-U1-8.8 | 5 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Hose clamp | L12-15 | 4 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 14 | Kit for fuel hose and clamp | 450MM/FPM | 2 | 13311744277 | $23.63 | Shop at ECS Tuning | ||||
| 15 | Fuel pipe bracket | 1 | 13531747091 | $10.70 | ENDED | Shop at ECS Tuning | ||||
| 16 | Tubing support | 2 | 13311716049 | $1.13 | Shop at ECS Tuning | |||||
| 17 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 18 | Hose clamp | 13MM-25MM | 1 | 11721285162 | ENDED | Shop at ECS Tuning |
